FX2400029-臺灣Diodes晶振-6035mm-24.000MHz,FX2400029晶振,臺灣Diodes晶振,6035mm晶振,頻率24.000MHz,負載18pf,工作溫度-20~70°C,FX四腳貼片晶振,無源晶振,石英晶體諧振器,環保晶振,高精度晶振,手持電子產品晶振,磁盤驅動器晶振,平板電腦晶振,便攜式設備晶振.

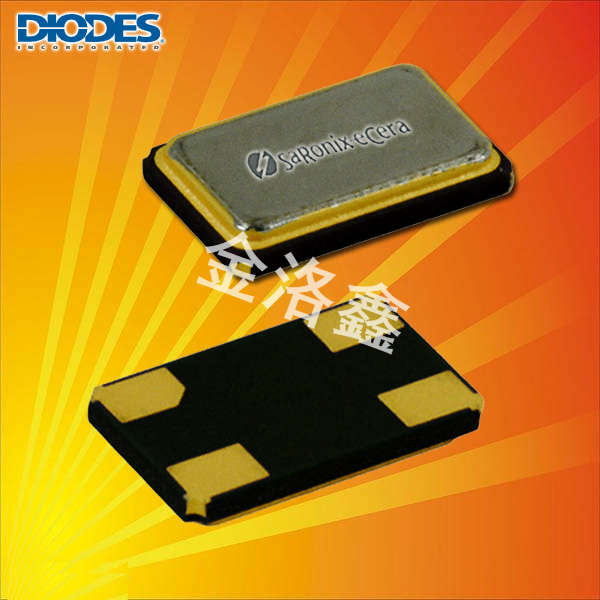

FX2400029-臺灣Diodes晶振-6035mm-24.000MHz 特點
•嚴格的公差和穩定性, 堅固的結構和優秀的機械抗震性
•非常緊湊的SMD封裝, 可磁帶和卷軸12毫米磁帶,每卷1000支
•可在磁帶和卷軸;12毫米磁帶,每卷1000支
•6.0 x 3.5mm陶瓷貼片 非常適合磁盤驅動器，PCMCIA, pc和手持電子產品
•FX：無鉛,符合RoHS/綠色標準  F6：符合RoHS標準

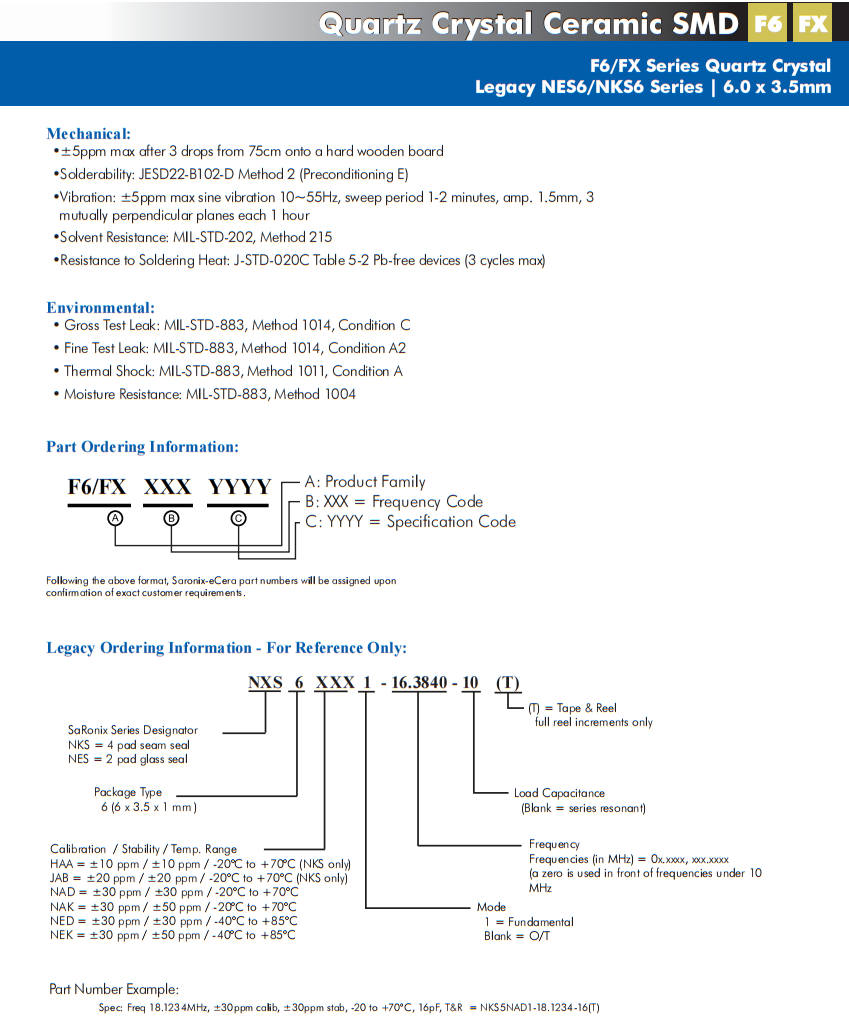

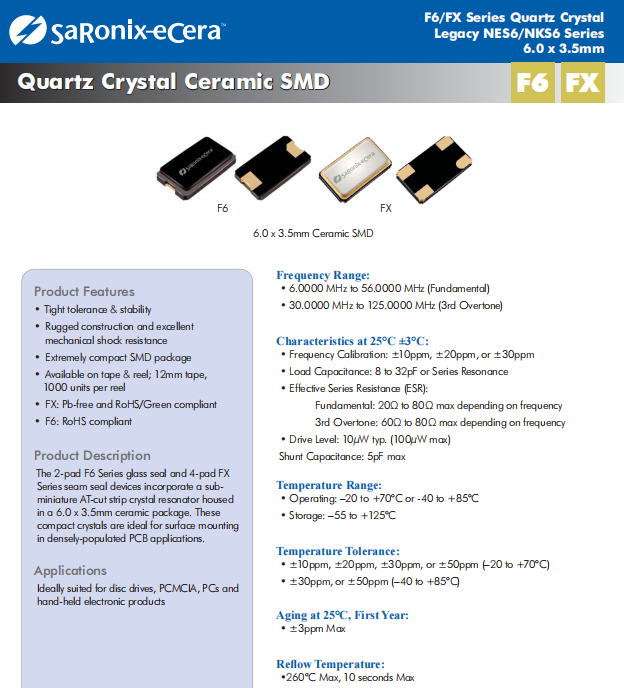

FX2400029-臺灣Diodes晶振-6035mm-24.000MHz,參數圖

FX2400029-臺灣Diodes晶振-6035mm-24.000MHz 尺寸圖

制造商零件編號	制造商	系列	頻率	頻率穩定性	頻率容差	負載電容
F62500047	Diodes 晶振	F6	25 MHz	±30ppm	±20ppm	18pF
F62700016	Diodes 晶振	F6	27 MHz	±50ppm	±50ppm	18pF
FX0800015	Diodes 晶振	FX	8 MHz	±20ppm	±20ppm	18pF
FX1200081	Diodes 晶振	FX	12 MHz	±20ppm	±20ppm	18pF
FX1200001	Diodes 晶振	FX	12 MHz	±10ppm	±10ppm	12pF
FX1200080	Diodes 晶振	FX	12 MHz	±30ppm	±30ppm	20pF
FX1220011	Diodes 晶振	FX	12.288 MHz	±30ppm	±50ppm	20pF
FX1430025	Diodes 晶振	FX	14.318 MHz	±30ppm	±30ppm	18pF
FX1430027	Diodes 晶振	FX	14.31818 MHz	±30ppm	±30ppm	18pF
FX1600052	Diodes 晶振	FX	16 MHz	±20ppm	±20ppm	18pF
FX1840027	Diodes 晶振	FX	18.432 MHz	±30ppm	±30ppm	20pF
FX1940008	Diodes 晶振	FX	19.44 MHz	±50ppm	±50ppm	13pF
FX1960009	Diodes 晶振	FX	19.6608 MHz	±30ppm	±30ppm	12pF
FX2000060	Diodes 晶振	FX	20 MHz	±20ppm	±10ppm	18pF
FX2210007	Diodes 晶振	FX	22.1184 MHz	±30ppm	±30ppm	20pF
FX2400029	Diodes 晶振	FX	24 MHz	±30ppm	±30ppm	18pF
FX2500059	Diodes 晶振	FX	25 MHz	±20ppm	±20ppm	18pF
FX2500061	Diodes 晶振	FX	25 MHz	±20ppm	±20ppm	18pF
FX2500063	Diodes 晶振	FX	25.000625 MHz	±20ppm	±20ppm	18pF
FX2500068Z	Diodes 晶振	FX	25 MHz	±20ppm	±15ppm	18pF
FX2710008	Diodes 晶振	FX	27.12 MHz	±20ppm	±20ppm	16pF
FX1020008	Diodes 晶振	FX	10.24 MHz	±30ppm	±30ppm	20pF
FX1100015	Diodes 晶振	FX	11.059 MHz	±30ppm	±30ppm	20pF
FX0800018	Diodes 晶振	FX	8 MHz	±20ppm	±20ppm	18pF
F60800010	Diodes 晶振	F6	8 MHz	±30ppm	±20ppm	18pF
F61200046	Diodes 晶振	F6	12 MHz	±30ppm	±20ppm	18pF
F61600023	Diodes 晶振	F6	16 MHz	±30ppm	±20ppm	18pF
F62400017	Diodes 晶振	F6	24 MHz	±30ppm	±30ppm	18pF
F60800008	Diodes 晶振	F6	8 MHz	±30ppm	±30ppm	18pF
F62500037	Diodes 晶振	F6	25 MHz	±30ppm	±30ppm	18pF
F62500039	Diodes 晶振	F6	25 MHz	±50ppm	±50ppm	16pF
F62500041	Diodes 晶振	F6	25 MHz	±30ppm	±50ppm	16pF
F62500043	Diodes 晶振	F6	25 MHz	±30ppm	±30ppm	18pF
F62500048	Diodes 晶振	F6	25 MHz	±50ppm	±30ppm	20pF
F62500049	Diodes 晶振	F6	25 MHz	±30ppm	±30ppm	16pF
F62700007	Diodes 晶振	F6	27 MHz	±20ppm	±20ppm	18pF
F61350007	Diodes 晶振	F6	13.56 MHz	±30ppm	±20ppm	18pF
F60800011	Diodes 晶振	F6	8 MHz	±30ppm	±30ppm	20pF
F61200041	Diodes 晶振	F6	12 MHz	±20ppm	±20ppm	20pF
F62500053	Diodes 晶振	F6	25 MHz	±30ppm	±30ppm	10pF
