ConnorWinfield溫補晶振為苛刻數據通信開辟新天地D32G-019.2M，Connor-Winfield's TCXOs provide outstanding performance, exceptional consistency and stable long-term characteristics, making them preferred in demanding communications, data-com and telecom applications.All recommended package types have Clipped Sine and/or HCMOS output and commercial to extended or industrial temperature ranges.Unique characteristics are listed below with each recommended package type.
Connor-Winfield的tcxo晶體振蕩器提供卓越的性能，卓越的一致性和穩定的長期特性，使其成為要求苛刻的通信，數據通信和電信應用的首選。所有推薦的封裝類型都具有剪切正弦和/或HCMOS輸出以及商業到擴展或工業溫度范圍。下面列出了每個推薦的包類型的獨特特性。

Manufacturer Part Number原廠代碼	Manufacturer品牌	Series型號	Frequency 頻率	Operating Temperature     工作溫度
HSM613-098.304M	Connor-Winfield	HSM6	98.304MHz	-40°C ~ 85°C
HSM613-114.285M	Connor-Winfield	HSM6	114.285MHz	-40°C ~ 85°C
HSM613-114.285M	Connor-Winfield	HSM6	114.285MHz	-40°C ~ 85°C
HSM613-114.285M	Connor-Winfield	HSM6	114.285MHz	-40°C ~ 85°C
HSM613-125.0M	Connor-Winfield	HSM6	125MHz	-40°C ~ 85°C
HSM613-125.0M	Connor-Winfield	HSM6	125MHz	-40°C ~ 85°C
HSM613-125.0M	Connor-Winfield	HSM6	125MHz	-40°C ~ 85°C
CWX823-125.0M	Connor-Winfield	CWX823	125MHz	-20°C ~ 70°C
CWX823-125.0M	Connor-Winfield	CWX823	125MHz	-20°C ~ 70°C
CWX823-125.0M	Connor-Winfield	CWX823	125MHz	-20°C ~ 70°C
CWX823-156.25M	Connor-Winfield	CWX823	156.25MHz	-20°C ~ 70°C
CWX823-156.25M	Connor-Winfield	CWX823	156.25MHz	-20°C ~ 70°C
CWX823-156.25M	Connor-Winfield	CWX823	156.25MHz	-20°C ~ 70°C
D32G-016.368M	Connor-Winfield	D32G	16.368MHz	-30°C ~ 85°C
D32G-016.368M	Connor-Winfield	D32G	16.368MHz	-30°C ~ 85°C
D32G-016.368M	Connor-Winfield	D32G	16.368MHz	-30°C ~ 85°C
D32G-026.0M	康納溫菲爾德晶振	D32G	26MHz	-30°C ~ 85°C
D32G-026.0M	Connor-Winfield	D32G	26MHz	-30°C ~ 85°C
D32G-026.0M	Connor-Winfield	D32G	26MHz	-30°C ~ 85°C
D32G-019.2M	Connor-Winfield	D32G	19.2MHz	-30°C ~ 85°C
D32G-019.2M	Connor-Winfield	D32G	19.2MHz	-30°C ~ 85°C
D32G-019.2M	Connor-Winfield	D32G	19.2MHz	-30°C ~ 85°C
HSM93-032.0M	Connor-Winfield	HSM9	32MHz	0°C ~ 70°C
HSM93-016.0M	Connor-Winfield	HSM9	16MHz	0°C ~ 70°C
HSM93-020.0M	Connor-Winfield	HSM9	20MHz	0°C ~ 70°C
HSM93-025.0M	Connor-Winfield	HSM9	25MHz	0°C ~ 70°C
PB223-156.25M	Connor-Winfield	PB	156.25MHz	-40°C ~ 85°C
PB223-156.25M	Connor-Winfield	PB	156.25MHz	-40°C ~ 85°C
PB223-156.25M	Connor-Winfield	PB	156.25MHz	-40°C ~ 85°C
D75J-050.0M	Connor-Winfield	D75J	50MHz	0°C ~ 70°C
D75J-050.0M	Connor-Winfield	D75J	50MHz	0°C ~ 70°C
D75J-050.0M	Connor-Winfield	D75J	50MHz	0°C ~ 70°C
D75J-038.88M	Connor-Winfield	D75J	38.88MHz	0°C ~ 70°C
D75J-038.88M	Connor-Winfield	D75J	38.88MHz	0°C ~ 70°C
D75J-038.88M	Connor-Winfield	D75J	38.88MHz	0°C ~ 70°C
D75J-040.0M	Connor-Winfield	D75J	40MHz	0°C ~ 70°C
D75J-040.0M	Connor-Winfield	D75J	40MHz	0°C ~ 70°C
D75J-040.0M	Connor-Winfield	D75J	40MHz	0°C ~ 70°C
DV75D-010.0M	Connor-Winfield	DV75D	10MHz	-40°C ~ 85°C
DV75D-010.0M	Connor-Winfield	DV75D	10MHz	-40°C ~ 85°C
DV75D-010.0M	Connor-Winfield	DV75D	10MHz	-40°C ~ 85°C
DV75D-020.0M	Connor-Winfield	DV75D	20MHz	-40°C ~ 85°C
DV75D-020.0M	Connor-Winfield	DV75D	20MHz	-40°C ~ 85°C
DV75D-020.0M	Connor-Winfield	DV75D	20MHz	-40°C ~ 85°C
D75A-010.0M	Connor-Winfield	D75A	10MHz	0°C ~ 70°C
D75A-010.0M	Connor-Winfield	D75A	10MHz	0°C ~ 70°C
D75A-010.0M	Connor-Winfield	D75A	10MHz	0°C ~ 70°C
D75A-019.2M	Connor-Winfield	D75A	19.2MHz	0°C ~ 70°C
D75A-019.2M	Connor-Winfield	D75A	19.2MHz	0°C ~ 70°C
D75A-019.2M	Connor-Winfield	D75A	19.2MHz	0°C ~ 70°C
DV75C-020.0M	Connor-Winfield	DV75C	20MHz	-40°C ~ 85°C
DV75C-020.0M	Connor-Winfield	DV75C	20MHz	-40°C ~ 85°C
DV75C-020.0M	Connor-Winfield	DV75C	20MHz	-40°C ~ 85°C
DV75C-010.0M	Connor-Winfield	DV75C	10MHz	-40°C ~ 85°C
DV75C-010.0M	Connor-Winfield	DV75C	10MHz	-40°C ~ 85°C
DV75C-010.0M	Connor-Winfield	DV75C	10MHz	-40°C ~ 85°C
P123-125.0M	Connor-Winfield	P	125MHz	0°C ~ 70°C
P122-100.0M	Connor-Winfield	P	100MHz	0°C ~ 70°C
P122-125.0M	Connor-Winfield	P	125MHz	0°C ~ 70°C
D53G-020.0M	Connor-Winfield	D53G	20MHz	-30°C ~ 85°C
D53G-020.0M	Connor-Winfield	D53G	20MHz	-30°C ~ 85°C

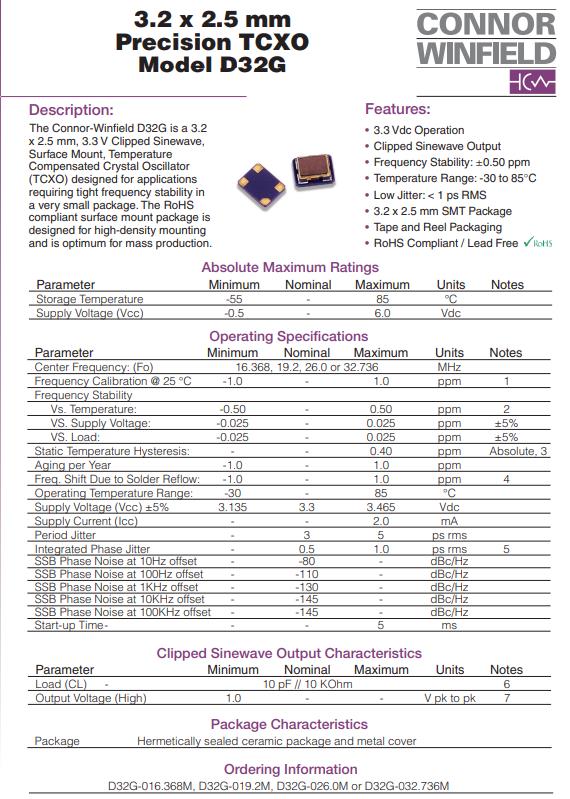

編碼D32G-019.2M，康納-溫菲爾德D32G是3.2 x 2.5 mm、3.3 V削波正弦波， 表面貼裝，溫補晶振 (TCXO)專為應用而設計 要求嚴格的頻率穩定性 一個非常小的包裹。RoHS兼容的表面貼裝封裝 專為高密度安裝而設計 并且最適合大規模生產。

SPXO振蕩器特點: 3.3Vdc操作 削波正弦波輸出,頻率穩定性:0.50ppm,溫度范圍:-30至85攝氏度,低抖動:<1psRMS,3.2 x 2.5毫米SMT封裝,帶卷包裝,符合RoHS標準/無鉛.ConnorWinfield溫補晶振為苛刻數據通信開辟新天地D32G-019.2M.
