- 規格型號：15621585
- 頻率：19.2MHz
- 尺寸：2.0×1.6mm
- 產品描述：臺灣百利通亞陶晶振,FW1920009Q晶振,2016mm晶振,頻率19.2MHz,負載10pf,工作溫度-40~125°C,石英SMD晶振,超小型晶振,晶體諧振器,耐高溫晶振,無鉛環保晶振,手持電腦晶振,筆記本電腦晶振,超寬頻晶振，無線個域網晶振,全球...

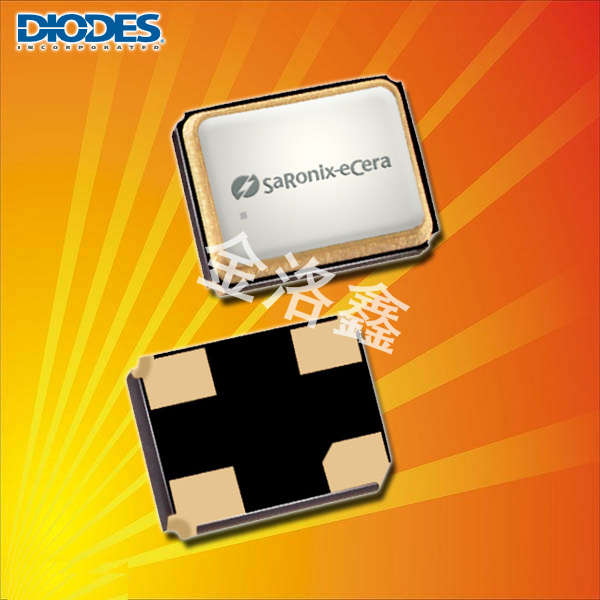

FW1920009Q-2016mm-19.2MHz-石英SMD晶振
品說明.jpg)
FW1920009Q-2016mm-19.2MHz-石英SMD晶振,臺灣百利通亞陶晶振,FW1920009Q晶振,2016mm晶振,頻率19.2MHz,負載10pf,工作溫度-40~125°C,石英SMD晶振,超小型晶振,晶體諧振器,耐高溫晶振,無鉛環保晶振,手持電腦晶振,筆記本電腦晶振,超寬頻晶振，無線個域網晶振,全球定位系統晶振,硬盤晶振.
FW1920009Q-2016mm-19.2MHz-石英SMD晶振 特點
•堅固的at切割晶體結構
•微型2.0 x 1.6mm陶瓷包裝,非常緊湊的SMD封裝
•可在磁帶和卷軸;8毫米磁帶,每卷3000支
•FW系列接縫密封裝置包括一個超小型at切割晶體諧振器,安裝在標準的2.0 x 1.6mm陶瓷
封裝,這些緊湊的晶體是理想的表面安裝在人口密集或小尺寸的PCB應用
•無鉛,符合RoHS/綠色標準
品規格參數圖.jpg)
FW1920009Q-2016mm-19.2MHz-石英SMD晶振,參數圖
| 項目 | 數值 | ||
| 頻率 | 19.2MHz | ||
| 工作溫度 | -40°C to +125°C | ||
| 保存溫度 | -40°C to +125°C | ||
| 頻率公差 @ +25°C | ± 30PPM | ||
| 頻率穩定性 ( ref. to+25°C) | ± 50PPM | ||
| 等效串聯電阻(R1) | 120 Ω | ||
| 并聯電容 (C0) | 3pF Max | ||
| 負載電容 (CL) | 10 pF | ||
| 激勵功率 | 100 μW Max | ||
| 老化 @ +25°C | ±3ppm Max | ||
品尺寸圖.jpg)

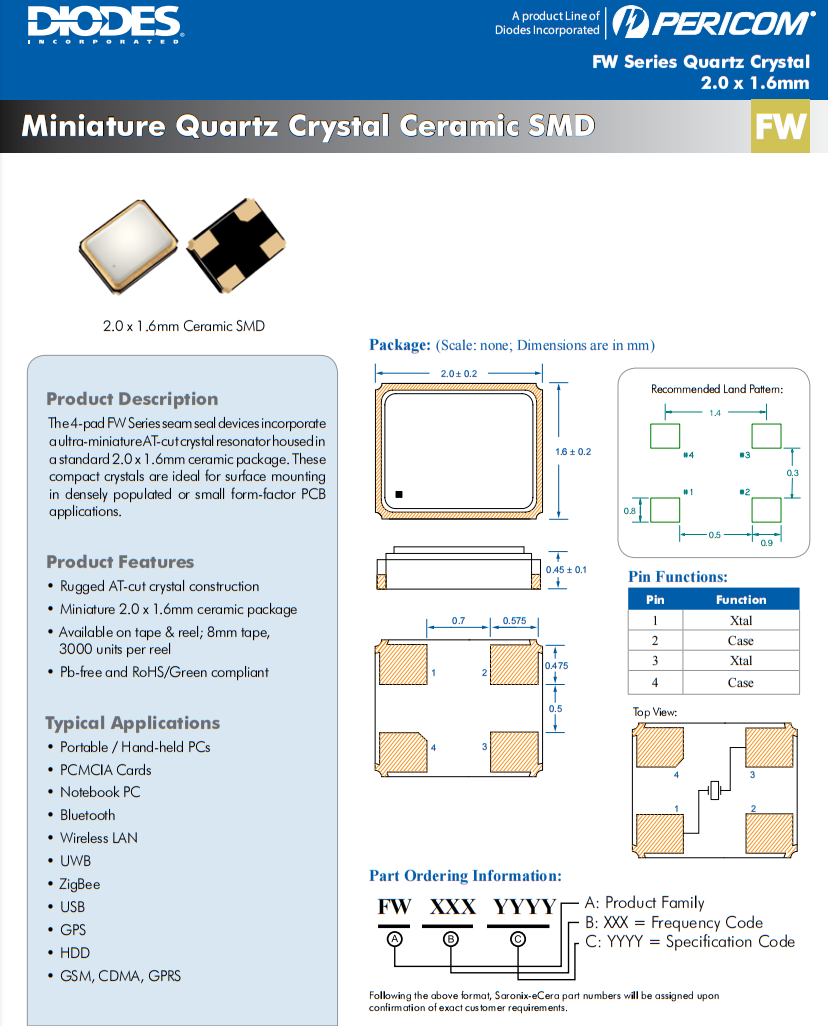

FW1920009Q-2016mm-19.2MHz-石英SMD晶振 尺寸圖
| 制造商零件編號 | 制造商 | 系列 | 頻率 | 頻率穩定性 | 頻率容差 | 負載電容 |
| FW520WFMT1 | Diodes 晶振 | FW | 52 MHz | ±17ppm | ±7ppm | 12pF |
| FW2500025Z | Diodes 晶振 | FW | 25 MHz | ±30ppm | ±30ppm | 20pF |
| FW2400063Q | Diodes 晶振 | FW | 24 MHz | ±50ppm | ±15ppm | 18pF |
| FW4000044Q | Diodes 晶振 | FW | 40 MHz | ±50ppm | ±10ppm | 8pF |
| FW2500039Q | Diodes 晶振 | FW | 25 MHz | ±30ppm | ±30ppm | 18pF |
| FW4000025Q | Diodes 晶振 | FW | 40 MHz | ±50ppm | ±10ppm | 10pF |
| FW1600010 | Diodes 晶振 | FW | 16 MHz | ±20ppm | ±10ppm | 8pF |
| FW4000015Q | Diodes 晶振 | FW | 40 MHz | ±15ppm | ±10ppm | 8pF |
| FW400WFMT1 | Diodes 晶振 | FW | 40 MHz | ±17ppm | ±7ppm | 12pF |
| FW384WFIN1 | Diodes 晶振 | FW | 38.4 MHz | ±12ppm | ±10ppm | 7pF |
| FW260WFMR1 | Diodes 晶振 | FW | 26 MHz | ±10ppm | ±10ppm | 9pF |
| FW374WFBR2 | Diodes 晶振 | FW | 37.4 MHz | ±10ppm | ±10ppm | 16pF |
| FW2700019Z | Diodes 晶振 | FW | 27 MHz | ±30ppm | ±30ppm | 20pF |
| FW4000001 | Diodes 晶振 | FW | 40 MHz | ±15ppm | ±10ppm | 18pF |
| FW4800010Z | Diodes 晶振 | FW | 48 MHz | ±20ppm | ±10ppm | 10pF |
| FW2600055Q | Diodes 晶振 | FW | 26 MHz | ±30ppm | ±10ppm | 10pF |
| FW1920009Q | Diodes 晶振 | FW | 19.2 MHz | ±50ppm | ±30ppm | 10pF |
| FW1600029Q | Diodes 晶振 | FW | 16 MHz | ±60ppm | ±10ppm | 8pF |
| FW2000016Q | Diodes 晶振 | FW | 20 MHz | ±50ppm | ±15ppm | 10pF |
| FW6000006Q | Diodes 晶振 | FW | 60 MHz | ±20ppm | ±20ppm | 8pF |
| FW400WFQA1 | Diodes 晶振 | FW | 40 MHz | ±10ppm | ±10ppm | 7pF |
| FW2400001 | Diodes 晶振 | FW | 24 MHz | ±50ppm | ±50ppm | 20pF |
| FW3840001 | Diodes 晶振 | FW | 38.4 MHz | ±10ppm | ±10ppm | 9pF |
| FW374WFBR1 | Diodes 晶振 | FW | 37.4 MHz | ±10ppm | ±10ppm | 12pF |
| FW3740001Z | Diodes 晶振 | FW | 37.4 MHz | ±10ppm | ±10ppm | 18pF |
| FW400WFMR1 | Diodes 晶振 | FW | 40 MHz | ±10ppm | ±10ppm | 10pF |
| FW2500022Q | Diodes 晶振 | FW | 25 MHz | ±25ppm | ±15ppm | 20pF |
| FW5000008Q | Diodes 晶振 | FW | 50 MHz | ±15ppm | ±10ppm | 10pF |
| FW374WFMR1 | Diodes 晶振 | FW | 37.4 MHz | ±10ppm | ±10ppm | 8pF |
| FW260WFMT1 | Diodes 晶振 | FW | 26 MHz | ±17ppm | ±7ppm | 12pF |
| FW2000008 | Diodes 晶振 | FW | 20 MHz | ±10ppm | ±10ppm | 12pF |
| FW1600008 | Diodes 晶振 | FW | 16 MHz | ±20ppm | ±10ppm | 12pF |
| FW2500071 | Diodes 晶振 | FW | 25 MHz | ±30ppm | ±30ppm | 16pF |
| FW2500072 | Diodes 晶振 | FW | 25 MHz | ±50ppm | ±15ppm | 10pF |
| FW2600008 | Diodes 晶振 | FW | 26 MHz | ±10ppm | ±10ppm | 8pF |
| FW2700008 | Diodes 晶振 | FW | 27 MHz | ±20ppm | ±10ppm | 15pF |
| FW2710004 | Diodes 晶振 | FW | 27.12 MHz | ±20ppm | ±15ppm | 8pF |
| FW3000023 | Diodes 晶振 | FW | 30 MHz | ±40ppm | ±30ppm | 6pF |
| FW3200004 | Diodes 晶振 | FW | 32 MHz | ±10ppm | ±10ppm | 8pF |
| FW3200022 | Diodes 晶振 | FW | 32 MHz | ±10ppm | ±10ppm | 8pF |
| FW3200033 | Diodes 晶振 | FW | 32 MHz | ±15ppm | ±15ppm | 8pF |
| FW3840015 | Diodes 晶振 | FW | 38.4 MHz | ±15ppm | ±10ppm | 7pF |
| FW4090001 | Diodes 晶振 | FW | 40.96 MHz | ±50ppm | ±10ppm | 6pF |
| FW2500051 | Diodes 晶振 | FW | 25 MHz | ±20ppm | ±20ppm | 12pF |
| FW3740009 | Diodes 晶振 | FW | 37.4 MHz | ±15ppm | ±10ppm | 11pF |
| FW1920001 | Diodes 晶振 | FW | 19.2 MHz | ±20ppm | ±10ppm | 8pF |
| FW2600018 | Diodes 晶振 | FW | 26 MHz | ±10ppm | ±10ppm | 9pF |
| FW3000010 | Diodes 晶振 | FW | 30 MHz | ±30ppm | ±30ppm | 10pF |
| FW1600001 | Diodes 晶振 | FW | 16 MHz | ±30ppm | ±30ppm | 8pF |
| FW1600006 | Diodes 晶振 | FW | 16 MHz | ±50ppm | ±50ppm | 18pF |
| FW1600009 | Diodes 晶振 | FW | 16 MHz | ±10ppm | ±10ppm | 9pF |
| FW1600015 | Diodes 晶振 | FW | 16 MHz | ±20ppm | ±10ppm | 8pF |
| FW2000011 | Diodes 晶振 | FW | 20 MHz | ±15ppm | ±10ppm | 10pF |
| FW2000012 | Diodes 晶振 | FW | 20 MHz | ±20ppm | ±10ppm | 12pF |
| FW2400007 | Diodes 晶振 | FW | 24 MHz | ±30ppm | ±30ppm | 15pF |
| FW2400011 | Diodes 晶振 | FW | 24 MHz | ±10ppm | ±10ppm | 8pF |
| FW2400014 | Diodes 晶振 | FW | 24 MHz | ±50ppm | ±30ppm | 20pF |
| FW2400015 | Diodes 晶振 | FW | 24 MHz | ±15ppm | ±15ppm | 8pF |
| FW2400016 | Diodes 晶振 | FW | 24 MHz | ±30ppm | ±30ppm | 18pF |
| FW2400022 | Diodes 晶振 | FW | 24 MHz | ±40ppm | ±30ppm | 6pF |
| FW2400023 | Diodes 晶振 | FW | 24 MHz | ±15ppm | ±15ppm | 10pF |
| FW2400030 | Diodes 晶振 | FW | 24 MHz | ±50ppm | ±50ppm | 8pF |
| FW2400031 | Diodes 晶振 | FW | 24 MHz | ±10ppm | ±10ppm | 12pF |
| FW2400033 | Diodes 晶振 | FW | 24 MHz | ±15ppm | ±20ppm | 7pF |
| FW2400039 | Diodes 晶振 | FW | 24 MHz | ±10ppm | ±10ppm | 15pF |
| FW2450002 | Diodes 晶振 | FW | 24.576 MHz | ±30ppm | ±30ppm | 12pF |
| FW2500001 | Diodes 晶振 | FW | 25 MHz | ±30ppm | ±30ppm | 18pF |
| FW2500003 | Diodes 晶振 | FW | 25 MHz | ±15ppm | ±15ppm | 12pF |
| FW2500012 | Diodes 晶振 | FW | 25 MHz | ±20ppm | ±20ppm | 18pF |
| FW2500016 | Diodes 晶振 | FW | 25 MHz | ±40ppm | ±30ppm | 6pF |
| FW2500018 | Diodes 晶振 | FW | 25 MHz | ±30ppm | ±30ppm | 10pF |
| FW2500020 | Diodes 晶振 | FW | 25 MHz | ±30ppm | ±30ppm | 18pF |
| FW2500021 | Diodes 晶振 | FW | 25 MHz | ±30ppm | ±30ppm | 20pF |
| FW2500026 | Diodes 晶振 | FW | 25 MHz | ±30ppm | ±30ppm | 6pF |
| FW2500027 | Diodes 晶振 | FW | 25 MHz | ±30ppm | ±30ppm | 18pF |
| FW2500034Z | Diodes 晶振 | FW | 25 MHz | ±10ppm | ±10ppm | 10pF |
| FW2500037Z | Diodes 晶振 | FW | 25 MHz | ±30ppm | ±30ppm | 20pF |
| FW2500042Z | Diodes 晶振 | FW | 25 MHz | ±30ppm | ±30ppm | 20pF |
| FW2600003 | Diodes 晶振 | FW | 26 MHz | ±10ppm | ±10ppm | 10pF |
| FW2600004 | Diodes 晶振 | FW | 26 MHz | ±15ppm | ±10ppm | 8pF |
| FW2600014 | Diodes 晶振 | FW | 26 MHz | ±10ppm | ±10ppm | 9pF |
