WX702系列小體積晶振尺寸7050mm晶振,LVPECL晶體振蕩器
來源：http://www.jisiw.com 作者：金洛鑫電子 2022年07月16

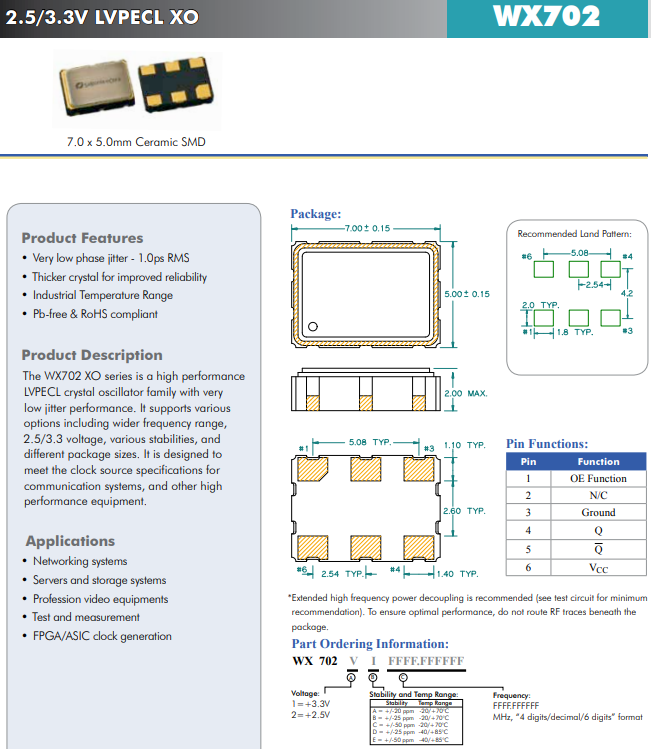

亞陶晶振WX702 XO系列是具有極低抖動性能的高性能LVPECL差分晶體振蕩器系列。它支持各種選項，包括更寬的頻率范圍、小體積晶振尺寸7.0x5.0mm、LVPECL晶體振蕩器，2.5/3.3 電壓、各種穩定性和不同的封裝尺寸。它旨在滿足通信系統和其他高性能設備的時鐘源規范。
.png)
(1).png)
特征：
非常低的相位抖動-1.0ps RMS
更厚的晶體以提高可靠性石英晶振
工業溫度范圍
無鉛且符合RoHS標準
應用于：網絡系統，服務器和存儲系統，專業視頻設備，測試和測量，FPGA/ASIC 時鐘生成
