百利通亞陶晶振UF254/UF24 XO系列是世界上最小的晶體振蕩器系列，經過優化以節省電路板空間。UF254/24系列小體積尺寸2.5x2.0mm、超低抖動HCLS差分晶體振蕩器，UF254/UF24 XO系列由具有超低抖動性能的高性能HCSL晶體振蕩器組成,UF2542HC0100.000000,晶體振蕩器，可滿足嚴格的芯片組要求。它支持多種選擇，包括更寬的頻率范圍、2.5V/3.3V電壓和各種穩定性。它旨在滿足通信系統和其他高性能設備的時鐘源規范。
百利通亞陶晶振UF254/UF24 XO系列是世界上最小的晶體振蕩器系列，經過優化以節省電路板空間。UF254/24系列小體積尺寸2.5x2.0mm、超低抖動HCLS差分晶體振蕩器，UF254/UF24 XO系列由具有超低抖動性能的高性能HCSL晶體振蕩器組成,UF2542HC0100.000000,晶體振蕩器，可滿足嚴格的芯片組要求。它支持多種選擇，包括更寬的頻率范圍、2.5V/3.3V電壓和各種穩定性。它旨在滿足通信系統和其他高性能設備的時鐘源規范。
| KK3270047 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±50ppm |
| KD3270044 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±25ppm |
| KD3270044 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±25ppm |
| KD3270044 | Diodes Incorporated | SaRonix-eCera™ KD | 32.768kHz | ±25ppm |
| KN3270035 | Diodes Incorporated | SaRonix-eCera™ KN | 32.768kHz | ±25ppm |
| KK3270007 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±25ppm |
| KK3270053 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±20ppm |
| KK3270041 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±20ppm |
| KK3270043 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±25ppm |
| S1700C-20.0000 | Diodes Incorporated | SaRonix™ S1700 | 20MHz | ±100ppm |
| KK3270048 | Diodes Incorporated | SaRonix-eCera™ KK | 32.768kHz | ±20ppm |
| KX3213H0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm |
| KX3213E0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±50ppm |
| KX3213A0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±20ppm |
| KX3213D0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm |
| KX3213Z0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | - |
| KX2511G0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm |
| NX5011C0056.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 56MHz | ±50ppm |
| KX2511D0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±25ppm |
| KX2511Z0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | - |
| NX7011E0059.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 59MHz | ±50ppm |
| FRSONT019 | Diodes Incorporated | SaRonix-eCera™ FR | 19.44MHz | ±25ppm |
| FRXDSL035 | Diodes Incorporated | SaRonix-eCera™ FR | 35.328MHz | ±25ppm |
| FRSONT038 | Diodes Incorporated | SaRonix-eCera™ FR | 38.88MHz | ±25ppm |
| KX2013C0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±50ppm |
UF254/UF24 XO系列由具有超低抖動性能的高性能HCSL晶體振蕩器組成,UF2542HC0100.000000,晶體振蕩器
特征：
特征：
超低相位抖動石英晶振
0.06ps 典型值。0.08ps RMS 最大值（12kHz至20MHz）
擴展溫度范圍高達125℃
完全無鉛且完全符合RoHS標準
不含鹵素和銻。“綠色”設備
應用程序：
網絡系統
光模塊
服務器和存儲系統
專業視頻設備
測試與測量
FPGA/ASIC 時鐘生成
112G 串行應用
.JPG)
.JPG)
| KX2013E0032.768000 | Diodes Incorporated | SaRonix-eCera™ KX | 32.768kHz | ±50ppm |
| NX5011C0120.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 120MHz | ±50ppm |
| NX7012D0025.001875 | Diodes Incorporated | SaRonix-eCera™ NX | 25.001875MHz | ±25ppm |
| JT255CF0019.200000 | Diodes Incorporated | SaRonix-eCera™ JT | 19.2MHz | ±500ppb |
| JT255CF0019.200000 | Diodes Incorporated | SaRonix-eCera™ JT | 19.2MHz | ±500ppb |
| JT255CF0019.200000 | Diodes Incorporated | SaRonix-eCera™ JT | 19.2MHz | ±500ppb |
| JT255CF0016.368000 | Diodes Incorporated | SaRonix-eCera™ JT | 16.368MHz | ±500ppb |
| JT255CF0016.368000 | Diodes Incorporated | SaRonix-eCera™ JT | 16.368MHz | ±500ppb |
| JT255CF0016.368000 | Diodes Incorporated | SaRonix-eCera™ JT | 16.368MHz | ±500ppb |
| JT255CF0016.369000 | Diodes Incorporated | SaRonix-eCera™ JT | 16.369MHz | ±500ppb |
| NX7011E0091.500000 | Diodes Incorporated | SaRonix-eCera™ NX | 91.5MHz | ±50ppm |
| NX7011D0070.656000 | Diodes Incorporated | SaRonix-eCera™ NX | 70.656MHz | ±25ppm |
| NX7011D0104.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 104MHz | ±25ppm |
| NX7021E0125.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±50ppm |
| SN10GE159 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 159.375MHz | ±50ppm |
| SNGPON155 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 155.52MHz | ±50ppm |
| LD10GE156 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 156.25MHz | ±50ppm |
| LDGPON155 | Diodes Incorporated | SaRonix-eCera™ ASSP XO™ | 155.52MHz | ±50ppm |
| LDF550001 | Diodes Incorporated | SaRonix-eCera™ LD | 155.52MHz | ±25ppm |
| PDF620004 | Diodes Incorporated | SaRonix-eCera™ PD | 156.25MHz | ±50ppm |
| S1613B-27.0000 | Diodes Incorporated | SaRonix-eCera™ FN | 27MHz | ±50ppm |
| KM3270002 | Diodes Incorporated | SaRonix-eCera™ KM | 32.768kHz | ±25ppm |
| KM3270003 | Diodes Incorporated | SaRonix-eCera™ KM | 32.768kHz | ±25ppm |
| PXA000010 | Diodes Incorporated | SaRonix-eCera™ PX | 100MHz | ±50ppm |
| PXA000010 | Diodes Incorporated | SaRonix-eCera™ PX | 100MHz | ±50ppm |
UF系列為高速提供超低抖動
為高性能應用提供盡可能小的封裝。
UF系列XO貼片振蕩器
超低均方根抖動(典型值低至50fs)
超過苛刻應用的要求，并且
提供廣泛的設計余量
2.5毫米x 2.0mm毫米大小的包裝:
優化電路板空間以支持微型系統設計
寬溫度范圍(-40°C至125°C)
符合汽車行業標準(符合AEC-Q104)的版本
支持在惡劣環境中運行的加固設備設計
應用程序：光學模塊，網絡系統，測試和測量，裝備，112G系列應用，PCIe 5.0建筑，系統，服務器和存儲系統，專業視頻設備，F(xiàn)PGA/ASIC參考時鐘，發電機
UF254/UF24 XO系列由具有超低抖動性能的高性能HCSL晶體振蕩器組成,UF2542HC0100.000000,晶體振蕩器
應用程序：光學模塊，網絡系統，測試和測量，裝備，112G系列應用，PCIe 5.0建筑，系統，服務器和存儲系統，專業視頻設備，F(xiàn)PGA/ASIC參考時鐘，發電機
UF254/UF24 XO系列由具有超低抖動性能的高性能HCSL晶體振蕩器組成,UF2542HC0100.000000,晶體振蕩器
| NX5031E0125.000000 | Diodes Incorporated | SaRonix-eCera™ NX | 125MHz | ±50ppm |
| FD0100003 | Diodes Incorporated | SaRonix-eCera™ FD | 1MHz | ±50ppm |
| FD0180008 | Diodes Incorporated | SaRonix-eCera™ FD | 1.8432MHz | ±50ppm |
| FD0180009 | Diodes Incorporated | SaRonix-eCera™ FD | 1.8432MHz | ±25ppm |
| FD0180010 | Diodes Incorporated | SaRonix-eCera™ FD | 1.8432MHz | ±50ppm |
| FD0200013 | Diodes Incorporated | SaRonix-eCera™ FD | 2.048MHz | ±25ppm |
| FD0200014 | Diodes Incorporated | SaRonix-eCera™ FD | 2.048MHz | ±50ppm |
| FD0200015 | Diodes Incorporated | SaRonix-eCera™ FD | 2.048MHz | ±50ppm |
| FD0350006 | Diodes Incorporated | SaRonix-eCera™ FD | 3.579545MHz | ±50ppm |
| FD0360017 | Diodes Incorporated | SaRonix-eCera™ FD | 3.6864MHz | ±50ppm |
| FD0360018 | Diodes Incorporated | SaRonix-eCera™ FD | 3.6864MHz | ±25ppm |
| FD0360019 | Diodes Incorporated | SaRonix-eCera™ FD | 3.6864MHz | ±50ppm |
| FD0400021 | Diodes Incorporated | SaRonix-eCera™ FD | 4MHz | ±25ppm |
| FD0500003 | Diodes Incorporated | SaRonix-eCera™ FD | 5MHz | ±50ppm |
| FD0600006 | Diodes Incorporated | SaRonix-eCera™ FD | 6MHz | ±25ppm |
| FD0610002 | Diodes Incorporated | SaRonix-eCera™ FD | 6.144MHz | ±20ppm |
| FD0730013 | Diodes Incorporated | SaRonix-eCera™ FD | 7.3728MHz | ±50ppm |
| FD0800013 | Diodes Incorporated | SaRonix-eCera™ FD | 8MHz | ±50ppm |
| FD0810003 | Diodes Incorporated | SaRonix-eCera™ FD | 8.192MHz | ±50ppm |
| FD0810004 | Diodes Incorporated | SaRonix-eCera™ FD | 8.192MHz | ±25ppm |
| FD0810005 | Diodes Incorporated | SaRonix-eCera™ FD | 8.192MHz | ±50ppm |
| FD0820001 | Diodes Incorporated | SaRonix-eCera™ FD | 8.25MHz | ±50ppm |
| FD1000015 | Diodes Incorporated | SaRonix-eCera™ FD | 10MHz | ±50ppm |
| FD1000016 | Diodes Incorporated | SaRonix-eCera™ FD | 10MHz | ±25ppm |
| FD1000017 | Diodes Incorporated | SaRonix-eCera™ FD | 10MHz | ±50ppm |

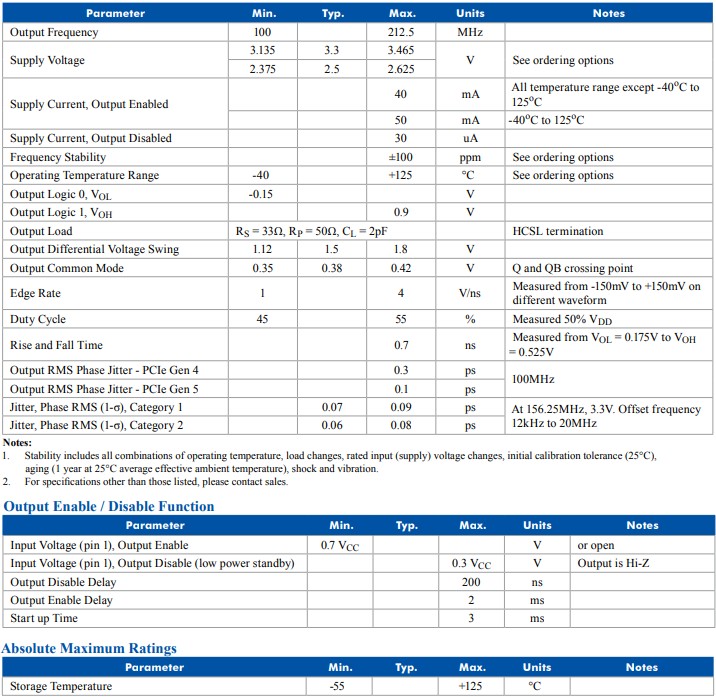

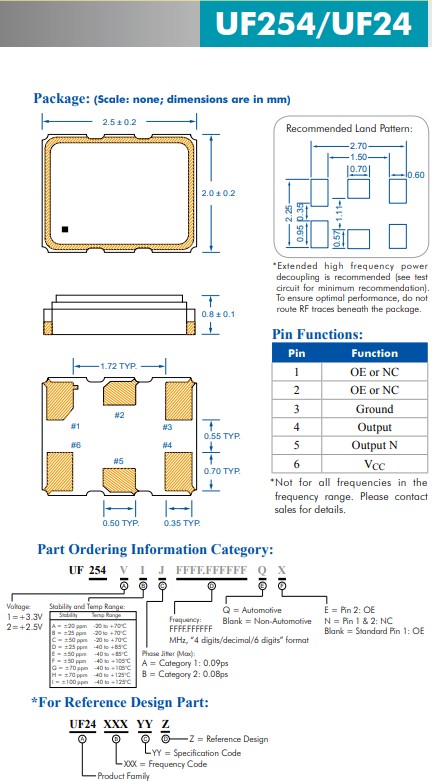

Product Parameters
