- 規格型號：56602433
- 頻率：312.5MHz
- 尺寸：3225
- 產品描述：Renesas八腳晶體,航空航天晶振,XPL526312.500000I晶振，瑞薩晶振公司，Renesas晶振，石英晶振，六腳晶振，進口晶振，SMD晶振，小體積晶振，5032晶振，6G室外基站晶振，無人機晶振，6G路由器晶振，6G通訊終端晶振，航空...
Renesas八腳晶體,航空航天晶振,XFP336312.500000I晶振
品說明.jpg)
Renesas八腳晶體,航空航天晶振,XFP336312.500000I晶振，瑞薩晶振公司，Renesas晶振，石英晶振，六腳晶振，進口晶振，SMD晶振，小體積晶振，5032晶振，6G室外基站晶振，無人機晶振，6G路由器晶振，6G通訊終端晶振，航空航天晶振，XF器件是超低相位噪聲石英基鎖相環振蕩器，支持大范圍的頻率和輸出接口類型。這些器件被設計為在三種不同的電源下工作，具有幾種引腳配置，以及兩個工作溫度范圍。XF器件可編程為產生15MHz至2100MHz的輸出頻率，分辨率低至1Hz精度。該系列設備的配置能力允許樣品和大型生產訂單的快速交付時間。部件在工廠用于固定頻率應用的一次性編程(OTP)，或者可以根據系統需要使用I2C進行現場編程。
品規格參數圖.jpg)
Renesas八腳晶體,航空航天晶振,XFP336312.500000I晶振
| Parameter | Test Condition | Minimum | Typical | Maximum | Units | |
| 輸出頻率范圍 | LVDS, LVPECL, CML. | 15 | — | 2100 | MHz | |
| HCSL. | 15 | — | 725 | |||
| 頻率容差 | Temperature = -40°C to +85°C. | — | — | ±25 | ppm | |
| Temperature = -40°C to +105°C. | — | — | ±50 | ppm | ||
| 頻率穩定度 | Temperature = 25°C. | — | — | ±15 | ppm | |
| 老化（第一年） | TA = 25°C. | — | — | ±3 | ppm | |
| 老化（十年） | TA = 25°C. | — | — | ±10 | ppm | |
| 輸出負載 | LVDS. | Differential. | — | 100 | — | Ω |
| LVPECL. | VDD - 2.0V. | — | 50 | — | ||
| HCSL. | To GND. | — | 50 | — | ||
| 啟動時間 | Output valid time after VDD meets minimum specified level. | — | 5 | — | ms | |
| 輸出上升時間 | LVDS. |
20% – 80%, 156.25MHz |
— | 299 | 400 | ps |
| LVPECL. | — | 287 | 400 | |||
| HCSL. | — | 306 | 400 | |||
| CML | — | 301 | 400 | |||
| 輸出下降時間 | LVDS. |
80% – 20%, 156.25MHz |
— | 279 | 400 | ps |
| LVPECL. | — | 274 | 400 | |||
| HCSL. | — | 284 | 400 | |||
| CML | — | 279 | 400 | |||
| 輸出時鐘工作周期 | LVDS. | 156.25MHz | 48 | — | 52 | % |
| LVPECL. | 156.25MHz | 48 | — | 52 | ||
| HCSL. | 156.25MHz | 48 | — | 52 | ||
| CML | 156.25MHz | 48 | — | 52 | ||
| 輸出啟用/禁用時間 | — | — | — | 1 | — | ms |

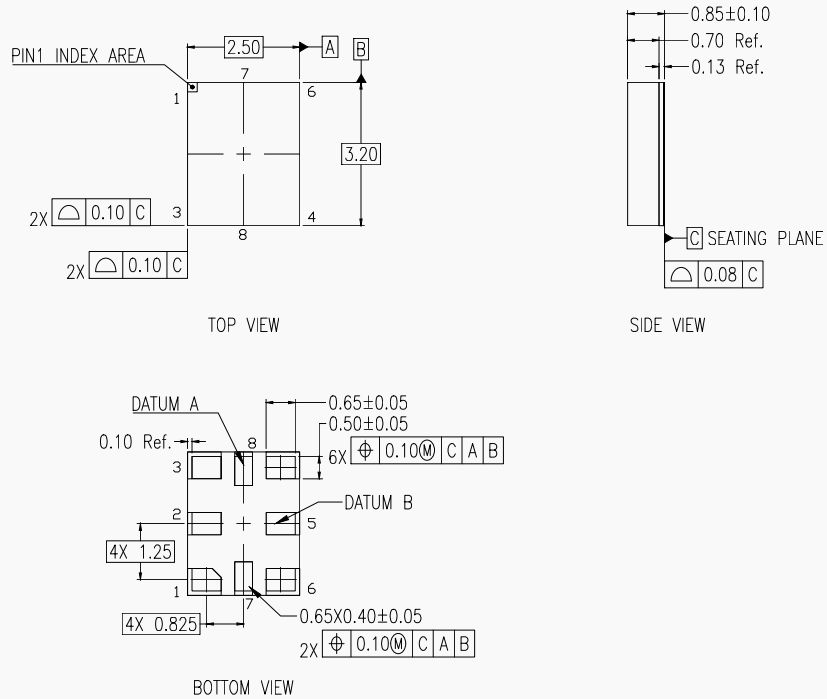

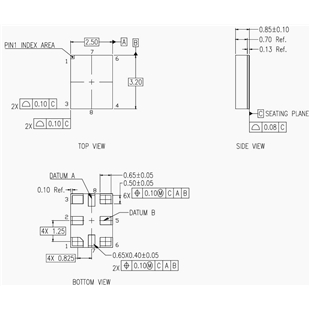

品尺寸圖.jpg)
Renesas八腳晶體,航空航天晶振,XFP336312.500000I晶振
| Renesas原廠編碼 | 生產商品牌 | 型號 | 頻率 | 輸出 | 電源電壓 | 頻率穩定度 |
| XFN336100.000000I | Renesas晶振 | XF | 100 MHz | HCSL | 3.3V | ±25ppm |
| XFP336312.500000I | Renesas晶振 | XF | 312.5 MHz | LVPECL | 3.3V | ±25ppm |
| XFL336156.250000I | Renesas晶振 | XF | 156.25 MHz | LVDS | 3.3V | ±25ppm |
| XFL336032.768000I | Renesas晶振 | XF | 32.768 MHz | LVDS | 3.3V | ±25ppm |
| XFL316125.000000I | Renesas晶振 | XF | 125 MHz | LVDS | 1.8V | ±25ppm |
| XFL336333.330000I | Renesas晶振 | XF | 333.33 MHz | LVDS | 3.3V | ±25ppm |
| XFL336032.000000I | Renesas晶振 | XF | 32 MHz | LVDS | 3.3V | ±25ppm |
| XFL336333.333333I | Renesas晶振 | XF | 333.333333 MHz | LVDS | 3.3V | ±25ppm |
| XFL336125.000000I | Renesas晶振 | XF | 125 MHz | LVDS | 3.3V | ±25ppm |
| XFL316300.000000I | Renesas晶振 | XF | 300 MHz | LVDS | 1.8V | ±25ppm |
| XFL336148.425824I | Renesas晶振 | XF | 148.425824 MHz | LVDS | 3.3V | ±25ppm |
| XFL336161.132812I | Renesas晶振 | XF | 161.132812 MHz | LVDS | 3.3V | ±25ppm |
| XFP336161.132812I | Renesas晶振 | XF | 161.132812 MHz | LVPECL | 3.3V | ±25ppm |
| XFL336096.000000I | Renesas晶振 | XF | 96 MHz | LVDS | 3.3V | ±25ppm |
| XFL336048.000000I | Renesas晶振 | XF | 48 MHz | LVDS | 3.3V | ±25ppm |
| XFL336333.333000I | Renesas晶振 | XF | 333.333 MHz | LVDS | 3.3V | ±25ppm |
| XFL336450.000000I | Renesas晶振 | XF | 450 MHz | LVDS | 3.3V | ±25ppm |
| XFL316270.000000I | Renesas晶振 | XF | 270 MHz | LVDS | 1.8V | ±25ppm |
| XFL336025.000000I | Renesas晶振 | XF | 25 MHz | LVDS | 3.3V | ±25ppm |
| XFP336048.000000I | Renesas晶振 | XF | 48 MHz | LVPECL | 3.3V | ±25ppm |
| XFP336156.253906I | Renesas晶振 | XF | 156.253906 MHz | LVPECL | 3.3V | ±25ppm |
| XFL336165.000000I | Renesas晶振 | XF | 165 MHz | LVDS | 3.3V | ±25ppm |
| XFL336161.132813I | Renesas晶振 | XF | 161.132813 MHz | LVDS | 3.3V | ±25ppm |
| XFL326300.000000I | Renesas晶振 | XF | 300 MHz | LVDS | 2.5V | ±25ppm |
| XFL326161.132812I | Renesas晶振 | XF | 161.132812 MHz | LVDS | 2.5V | ±25ppm |
| XFN336212.500000I | Renesas晶振 | XF | 212.5 MHz | HCSL | 3.3V | ±25ppm |
| XFP316156.250000I | Renesas晶振 | XF | 156.25 MHz | LVPECL | 1.8V | ±25ppm |
| XFL336425.000000I | Renesas晶振 | XF | 425 MHz | LVDS | 3.3V | ±25ppm |
| XFL336780.000000I | Renesas晶振 | XF | 780 MHz | LVDS | 3.3V | ±25ppm |
| XFL326148.351648I | Renesas晶振 | XF | 148.351648 MHz | LVDS | 2.5V | ±25ppm |
| XFL336400.000000I | Renesas晶振 | XF | 400 MHz | LVDS | 3.3V | ±25ppm |
| XFL316050.000000I | Renesas晶振 | XF | 50 MHz | LVDS | 1.8V | ±25ppm |
| XFL326148.500000I | Renesas晶振 | XF | 148.5 MHz | LVDS | 2.5V | ±25ppm |
| XFL336603.229000I | Renesas晶振 | XF | 603.229 MHz | LVDS | 3.3V | ±25ppm |
| XFL336033.300000I | Renesas晶振 | XF | 33.3 MHz | LVDS | 3.3V | ±25ppm |
| XFP326100.000000I | Renesas晶振 | XF | 100 MHz | LVPECL | 2.5V | ±25ppm |
| XFL336380.000000I | Renesas晶振 | XF | 380 MHz | LVDS | 3.3V | ±25ppm |
| XFL316080.000000I | Renesas晶振 | XF | 80 MHz | LVDS | 1.8V | ±25ppm |
| XFL316100.000000I | Renesas晶振 | XF | 100 MHz | LVDS | 1.8V | ±25ppm |
| XFL326080.000000I | Renesas晶振 | XF | 80 MHz | LVDS | 2.5V | ±25ppm |
| XFL316400.000000I | Renesas晶振 | XF | 400 MHz | LVDS | 1.8V | ±25ppm |
| XFP336125.000000I | Renesas晶振 | XF | 125 MHz | LVPECL | 3.3V | ±25ppm |
| XFP336050.000000I | Renesas晶振 | XF | 50 MHz | LVPECL | 3.3V | ±25ppm |
| XFL326156.250000I | Renesas晶振 | XF | 156.25 MHz | LVDS | 2.5V | ±25ppm |
| XFP326025.000000I | Renesas晶振 | XF | 25 MHz | LVPECL | 2.5V | ±25ppm |
| XFP336156.250000I | Renesas晶振 | XF | 156.25 MHz | LVPECL | 3.3V | ±25ppm |
| XFL336150.000000I | Renesas晶振 | XF | 150 MHz | LVDS | 3.3V | ±25ppm |
| XFL316025.000000I | Renesas晶振 | XF | 25 MHz | LVDS | 1.8V | ±25ppm |
| XFL316200.000000I | Renesas晶振 | XF | 200 MHz | LVDS | 1.8V | ±25ppm |
| XFL316052.083333I | Renesas晶振 | XF | 52.083333 MHz | LVDS | 1.8V | ±25ppm |
| XFP326715.033000I | Renesas晶振 | XF | 715.033 MHz | LVPECL | 2.5V | ±25ppm |
| XFL336100.000000I | Renesas晶振 | XF | 100 MHz | LVDS | 3.3V | ±25ppm |
| XFL326100.000000I | Renesas晶振 | XF | 100 MHz | LVDS | 2.5V | ±25ppm |
| XFL316322.265625I | Renesas晶振 | XF | 322.265625 MHz | LVDS | 1.8V | ±25ppm |
| XFP336025.235849I | Renesas晶振 | XF | 25.235849 MHz | LVPECL | 3.3V | ±25ppm |
| XFL316156.250000I | Renesas晶振 | XF | 156.25 MHz | LVDS | 1.8V | ±25ppm |
| XFL336322.265625I | Renesas晶振 | XF | 322.265625 MHz | LVDS | 3.3V | ±25ppm |
| XFL336027.000000I | Renesas晶振 | XF | 27 MHz | LVDS | 3.3V | ±25ppm |
| XFL316250.000000I | Renesas晶振 | XF | 250 MHz | LVDS | 1.8V | ±25ppm |
| XFP326312.500000I | Renesas晶振 | XF | 312.5 MHz | LVPECL | 2.5V | ±25ppm |
| XFP336A00.000000I | Renesas晶振 | XF | 1 GHz | LVPECL | 3.3V | ±25ppm |
| XFL336830.078125I | Renesas晶振 | XF | 830.078125 MHz | LVDS | 3.3V | ±25ppm |
| XFL315020.000000K | Renesas晶振 | XF | 20 MHz | LVDS | 1.8V | ±50ppm |
| XFL315025.000000K | Renesas晶振 | XF | 25 MHz | LVDS | 1.8V | ±50ppm |
