- 規格型號：35756078
- 頻率：48MHz
- 尺寸：2.0×1.6mm
- 產品描述：美國Raltron晶振,R2016石英晶體諧振器,進口SMD晶振,R2016-48.000-8-F-1515-EXT-TR晶振,工作溫度-40~85°C,頻率48MHz,負載8pf,2016mm晶振,超小型晶振,高精度晶振,可穿戴設備晶振,便攜式設備晶振,無線通信晶振,藍牙模塊...

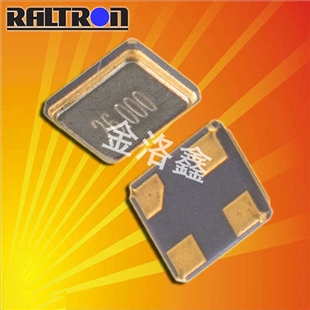

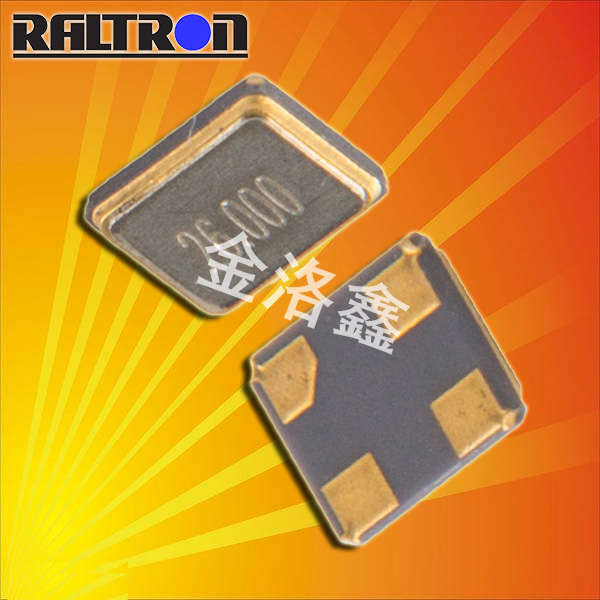

R2016-48.000-8-F-1515-EXT-TR|-40~85°C|48MHz
品說明.jpg)
R2016-48.000-8-F-1515-EXT-TR|-40~85°C|48MHz ,美國Raltron晶振,R2016石英晶體諧振器,進口SMD晶振,R2016-48.000-8-F-1515-EXT-TR晶振,工作溫度-40~85°C,頻率48MHz,負載8pf,2016mm晶振,超小型晶振,高精度晶振,可穿戴設備晶振,便攜式設備晶振,無線通信晶振,藍牙模塊晶振.
品規格參數圖.jpg)

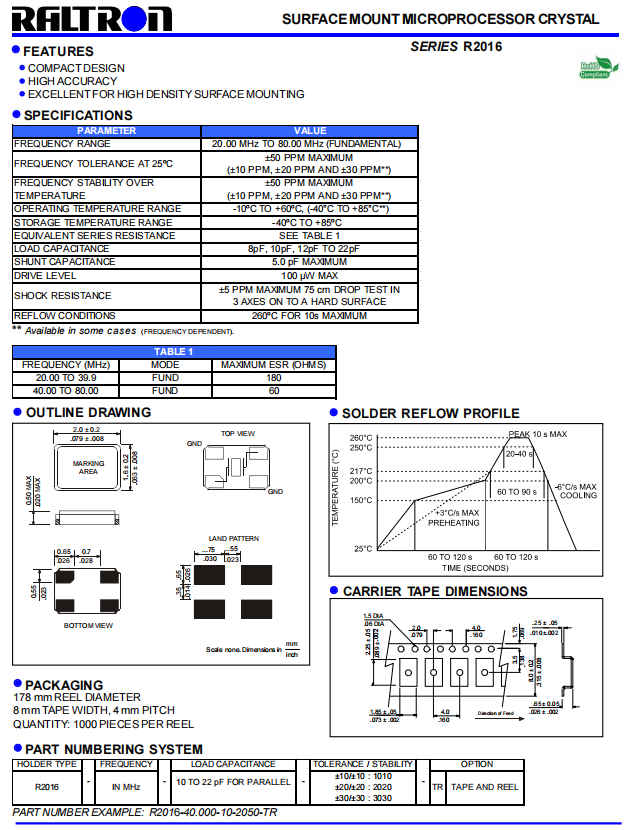

R2016-48.000-8-F-1515-EXT-TR|-40~85°C|48MHz ,參數圖
| 規格參數 | 數值 | ||
| 頻率 | 48MHz | ||
| 頻率公差 (at +25°C) | ± 15PPM | ||
| 溫度范圍內的頻率穩定性 | ± 15PPM | ||
| 工作溫度 | -40°C to +85°C | ||
| 保存溫度 | -40°C to +85°C | ||
| 老化 | ±2ppm Per year | ||
| 并聯電容 (C0) | 5 pF | ||
| 負載電容 (CL) | 8 pF | ||
| 激勵功率 | 100 µW | ||
| 等效串聯電阻(ESR) | 60 Ω | ||
| 回流焊條件 | 260° C ±5°C FOR 10s MAXIMUM | ||
品尺寸圖.jpg)

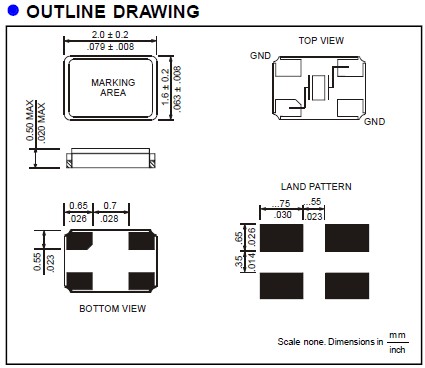

R2016-48.000-8-F-1515-EXT-TR|-40~85°C|48MHz 尺寸圖
| Raltron原廠編碼 | 型號 | 頻率 | 尺寸 | 頻率偏差 | 頻率穩定度 | 負載 |
| R2016-16.000-10-1015-TR-NS1 | R2016 | 16.000MHz | 2.0 x 1.6mm | ± 10 ppm | ± 15 ppm | 10 pF |
| R2016-16.000-12-1020-TR | R2016 | 16.000MHz | 2.0 x 1.6mm | ± 10 ppm | ± 20 ppm | 12 pF |
| R2016-16.000-18-3030-EXT-TR | R2016 | 16.000MHz | 2.0 x 1.6mm | ± 30 ppm | ± 30 ppm | 18 pF |
| R2016-16.000-8-1010-TR-NS1 | R2016 | 16.000MHz | 2.0 x 1.6mm | ± 10 ppm | ± 10 ppm | 8 pF |
| R2016-16.000-9-1010-TR-NS1 | R2016 | 16.000MHz | 2.0 x 1.6mm | ± 10 ppm | ± 10 ppm | 9 pF |
| R2016-19.200-10-1010-TR | R2016 | 19.200MHz | 2.0 x 1.6mm | ± 10 ppm | ± 10 ppm | 10 pF |
| R2016-20.000-10-3030-EXT-TR | R2016 | 20.000MHz | 2.0 x 1.6mm | ± 30 ppm | ± 30 ppm | 10 pF |
| R2016-24.000-10-1010-TR-NS1 | R2016 | 24.000MHz | 2.0 x 1.6mm | ± 10 ppm | ± 10 ppm | 10 pF |
| R2016-24.000-12-1010-TR-NS1 | R2016 | 24.000MHz | 2.0 x 1.6mm | ± 10 ppm | ± 10 ppm | 12 pF |
| R2016-24.000-18-3030-EXT-TR | R2016 | 24.000MHz | 2.0 x 1.6mm | ± 30 ppm | ± 30 ppm | 18 pF |
| R2016-24.000-6-1015-TR-NS1 | R2016 | 24.000MHz | 2.0 x 1.6mm | ± 10 ppm | ± 15 ppm | 6 pF |
| R2016-24.000-7-1015-TR-NS1 | R2016 | 24.000MHz | 2.0 x 1.6mm | ± 10 ppm | ± 15 ppm | 7 pF |
| R2016-24.000-8-1010-TR-NS1 | R2016 | 24.000MHz | 2.0 x 1.6mm | ± 10 ppm | ± 10 ppm | 8 pF |
| R2016-24.000-9-1010-EXT-TR | R2016 | 24.000MHz | 2.0 x 1.6mm | ± 10 ppm | ± 10 ppm | 9 pF |
| R2016-25.000-12-F-3030-EXT-TR | R2016 | 25.000MHz | 2.0 x 1.6mm | ± 30 ppm | ± 30 ppm | 12 pF |
| R2016-25.000-16-F-2525-EXT-TR | R2016 | 25.000MHz | 2.0 x 1.6mm | ± 25 ppm | ± 25 ppm | 16 pF |
| R2016-25.000-18-F-3030-TR-NS1 | R2016 | 25.000MHz | 2.0 x 1.6mm | ± 30 ppm | ± 30 ppm | 18 pF |
| R2016-25.000-20-F-1515-EXT-TR | R2016 | 25.000MHz | 2.0 x 1.6mm | ± 15 ppm | ± 15 ppm | 20 pF |
| R2016-26.000-10-F-1010-TR | R2016 | 26.000MHz | 2.0 x 1.6mm | ± 10 ppm | ± 10 ppm | 10 pF |
| R2016-26.000-6-F-1010-TR | R2016 | 26.000MHz | 2.0 x 1.6mm | ± 10 ppm | ± 10 ppm | 6 pF |
| R2016-26.000-8-F-1010-TR-NS1 | R2016 | 26.000MHz | 2.0 x 1.6mm | ± 10 ppm | ± 10 ppm | 8 pF |
| R2016-26.000-9-F-1010-TR-NS5 | R2016 | 26.000MHz | 2.0 x 1.6mm | ± 10 ppm | ± 10 ppm | 9 pF |
| R2016-27.000-10-F-2020-EXT-TR | R2016 | 27.000MHz | 2.0 x 1.6mm | ± 20 ppm | ± 20 ppm | 10 pF |
| R2016-27.000-8-F-1010-EXT-TR | R2016 | 27.000MHz | 2.0 x 1.6mm | ± 10 ppm | ± 10 ppm | 8 pF |
| R2016-27.120-10-F-1010-TR-NS4 | R2016 | 27.120MHz | 2.0 x 1.6mm | ± 10 ppm | ± 10 ppm | 10 pF |
| R2016-27.120-8-F-1010-EXT-TR | R2016 | 27.120MHz | 2.0 x 1.6mm | ± 10 ppm | ± 10 ppm | 8 pF |
| R2016-30.000-8-F-1010-TR-NS1 | R2016 | 30.000MHz | 2.0 x 1.6mm | ± 10 ppm | ± 10 ppm | 8 pF |
| R2016-32.000-10-F-1020-EXT-TR | R2016 | 32.000MHz | 2.0 x 1.6mm | ± 10 ppm | ± 20 ppm | 10 pF |
| R2016-32.000-12-F-1010-EXT-TR | R2016 | 32.000MHz | 2.0 x 1.6mm | ± 10 ppm | ± 10 ppm | 12 pF |
| R2016-32.000-16-F-1010-TR | R2016 | 32.000MHz | 2.0 x 1.6mm | ± 10 ppm | ± 10 ppm | 16 pF |
| R2016-32.000-8-F-1010-EXT-TR | R2016 | 32.000MHz | 2.0 x 1.6mm | ± 10 ppm | ± 10 ppm | 8 pF |
| R2016-32.000-9-F-1025-EXT-TR | R2016 | 32.000MHz | 2.0 x 1.6mm | ± 10 ppm | ± 25 ppm | 9 pF |
| R2016-32.000-10-F-1010-TR-B1B_RevB | R2016 | 32.000MHz | 2.0 x 1.6mm | ± 10 ppm | ± 10 ppm | 10 pF |
| R2016-38.400-10-F-1010-TR | R2016 | 38.400MHz | 2.0 x 1.6mm | ± 10 ppm | ± 10 ppm | 10 pF |
| R2016-38.400-7-F-1010-TR | R2016 | 38.400MHz | 2.0 x 1.6mm | ± 10 ppm | ± 10 ppm | 7 pF |
| R2016-38.400-8-F-1012-EXT-TR | R2016 | 38.400MHz | 2.0 x 1.6mm | ± 10 ppm | ± 12 ppm | 8 pF |
| R2016-38.400-9-F-1010-TR-NS1 | R2016 | 38.400MHz | 2.0 x 1.6mm | ± 10 ppm | ± 10 ppm | 9 pF |
| R2016-40.000-6-F-1010-TR-NS1 | R2016 | 40.000MHz | 2.0 x 1.6mm | ± 10 ppm | ± 10 ppm | 6 pF |
| R2016-40.000-8-F-1515-TR-NS1 | R2016 | 40.000MHz | 2.0 x 1.6mm | ± 15 ppm | ± 15 ppm | 8 pF |
| R2016-48.000-18-F-1010-TR | R2016 | 48.000MHz | 2.0 x 1.6mm | ± 10 ppm | ± 10 ppm | 18 pF |
| R2016-48.000-6-F-5050-TR | R2016 | 48.000MHz | 2.0 x 1.6mm | ± 50 ppm | ± 50 ppm | 6 pF |
| R2016-48.000-7-F-0715-TR-NS1 | R2016 | 48.000MHz | 2.0 x 1.6mm | ± 7 ppm | ± 15 ppm | 7 pF |
| R2016-48.000-8-F-1515-EXT-TR | R2016 | 48.000MHz | 2.0 x 1.6mm | ± 15 ppm | ± 15 ppm | 8 pF |
