- 規格型號：36035058
- 頻率：80MHz
- 尺寸：5.0×3.2mm
- 產品描述：日本京瓷進口晶振,差分晶體振蕩器,KC5032P-H2有源晶振，KC5032P80.000H2GE00晶振,低抖動石英晶振,陶瓷晶振,HCSL輸出晶振,頻率80MHz,電壓2.5V,工作溫度-40~85°C,頻率穩定性50ppm,醫療設備應用晶振,智能家居應用晶振,無...

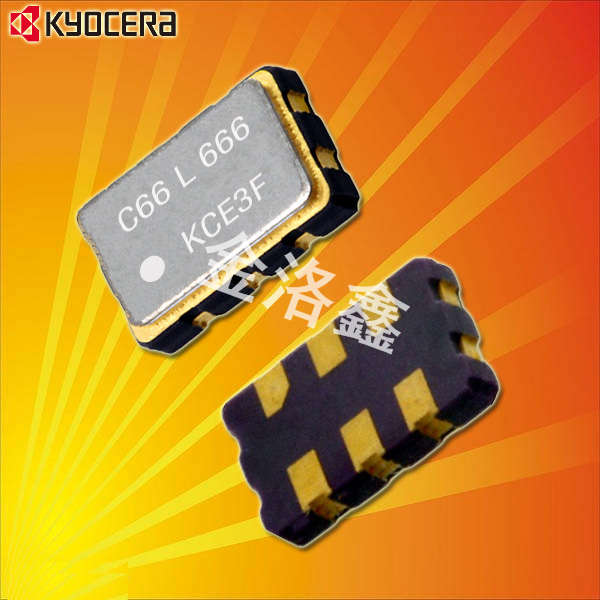

KC5032P80.000H2GE00|京瓷差分晶體振蕩器|低抖動石英晶振
品說明.jpg)
KC5032P80.000H2GE00|京瓷差分晶體振蕩器|低抖動石英晶振,日本京瓷進口晶振,差分晶體振蕩器,KC5032P-H2有源晶振,KC5032P80.000H2GE00晶振,低抖動石英晶振,陶瓷晶振,HCSL輸出晶振,頻率80MHz,電壓2.5V,工作溫度-40~85°C,頻率穩定性50ppm,醫療設備應用晶振,智能家居應用晶振,無線模塊應用晶振,投影儀專用晶振.
KC5032P80.000H2GE00|京瓷差分晶體振蕩器|低抖動石英晶振 特點：
●小型陶瓷封裝類型
●采用縫隙封裝的高可靠性
●LVDS輸出
●電源電壓VCC=2.5V
●可支持±25×10 - 6
品規格參數圖.jpg)

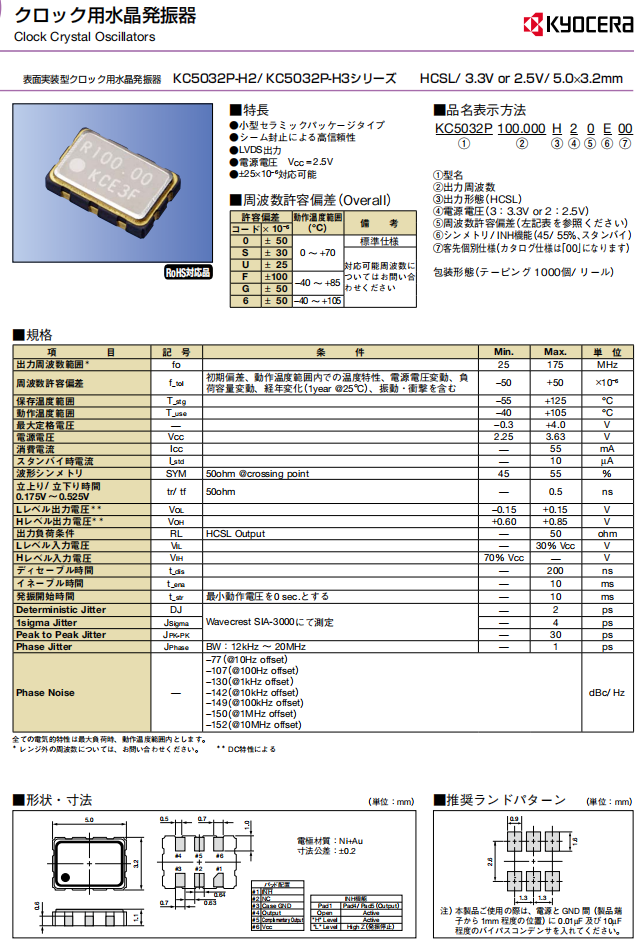

KC5032P80.000H2GE00|京瓷差分晶體振蕩器|低抖動石英晶振,參數圖
| 項目 | 符號 | 規格說明 | 條件 |
| 額定頻率 | f_nom | 80MHz | 請聯系我們以便獲取其它可用頻率的相關信息 |
| 電源電壓 | Vcc | 2.5V | |
| 儲存溫度 | T_stg | -55℃~+125℃ | 裸存 |
| 工作溫度 | T_use | -40℃~ +85℃ | |
| 頻率公差（標準） | f_tol | ±100 ppm | +25℃,超出標準的規格說明請聯系我們以便獲取相關信息 |
| 電流消耗 |
ICC
|
55mA Max | |
| 待機電流 |
I_std
|
10μA Max | |
| 對稱性（占空比） | SYM |
45%min
55%max |
100ohm @crossing point
|
| 低位準輸出電壓 | VOH |
0.6Vmin
0.85Vmax |
|
| 高位準輸出電壓 | VOL |
±0.15V
|
|
| 輸出負載 | RL | 50Ω |
HCSL Output
|
| 輸入電壓 | VIH | 70%Vcc Min | OE terminal |
| VIL | 30%Vcc Max | ||
| 上升下降時間 | tr/tf | 0.5ns Max |
50ohm
|
| 起始時間 | t str | 10ms Max |
@Minimum operating voltage to be 0 sec
|
| 確定性抖動 | DJ | 2ps Max |
Measured with Wavecrest SIA-3000 |
|
1 Sigma 抖動
|
JSigma
|
4ps Max | |
| 峰對峰抖動 |
JPK-PK
|
30ps Max | |
| 相位抖動 |
JPhase
|
1ps Max |
BW：12kHz~20MHz
|
品尺寸圖.jpg)

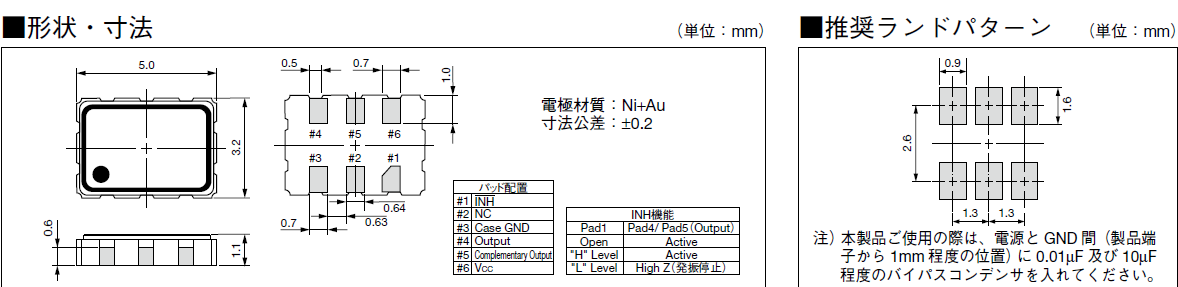

KC5032P80.000H2GE00|京瓷差分晶體振蕩器|低抖動石英晶振 尺寸圖
