- 規格型號：84822565
- 頻率：32MHz
- 尺寸：2016mm
- 產品描述：12.90329晶振,智能語音助手晶振,GEYER環保有源晶振，作為提供產品領域的國際活躍專家，我們深知全面客戶服務的意義和以客戶需求為中心的物流設計。通過集中我們在亞洲工廠的主要生產，高端生產以及專業和高性能的開發...

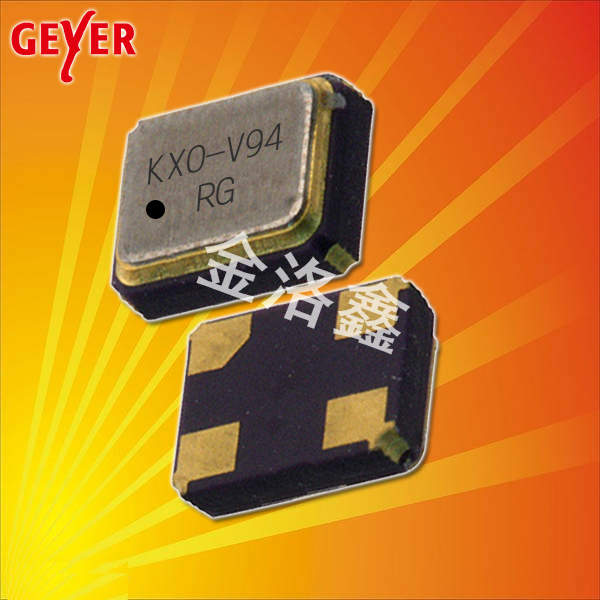

12.90329晶振,智能語音助手晶振,GEYER環保有源晶振
品說明.jpg)
12.90329晶振,智能語音助手晶振,GEYER環保有源晶振，作為提供產品領域的國際活躍專家，我們深知全面客戶服務的意義和以客戶需求為中心的物流設計。通過集中我們在亞洲工廠的主要生產，高端生產以及專業和高性能的開發和服務團隊，我們可靠的合作伙伴。GEYER晶振公司，格耶晶振，6G路由器晶振，6G室外基站晶振，超小型晶振，2016晶體，小尺寸晶振，高品質晶振，歐美晶振，進口晶振，6G信號傳輸設備晶振，衛星通信晶振，高精度晶振，環保無鉛晶振，小體積晶振，低損耗晶振，四腳晶振，石英晶振，有源晶振，高精度晶振，貼片晶振。

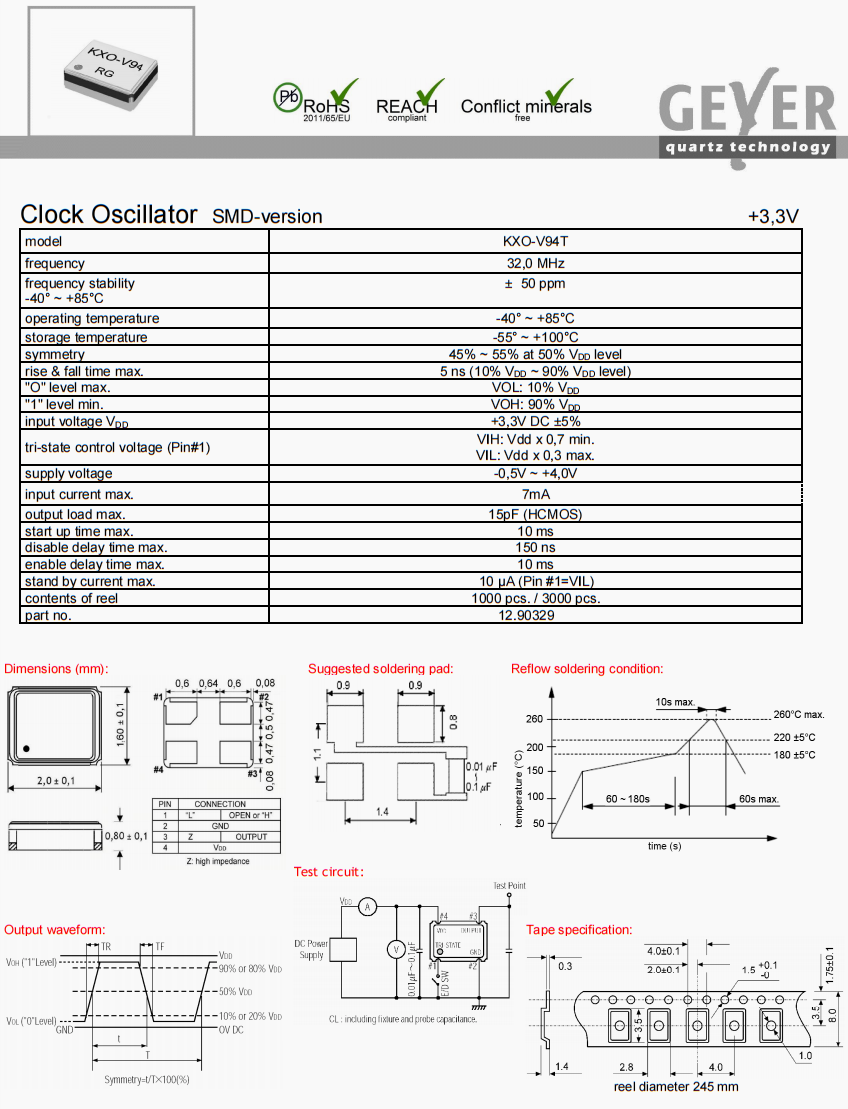

品規格參數圖.jpg)
12.90329晶振,智能語音助手晶振,GEYER環保有源晶振
| 型號 | KXO-V94T |
| 頻率 | 32,0 MHz |
| 頻率穩定度 | ± 50 ppm |
| 工作溫度 | -40° ~ +85°C |
| 儲存溫度 | -55° ~ +100°C |
| 對稱性 | 45% ~ 55% at 50% VDD level |
| 上升＆下降最大值 | 5 ns ( 10% VDD ~ 90% VDD level) |
| “O”最大電平 | VOL: 10% VDD |
| “1”級別最小值 | VOH: 90% VDD |
| 輸入電壓 | +3,3V DC ±5% |
| 三態控制電壓 | VIH: Vdd x 0,7 min. VIL: Vdd x 0,3 max. |
| 電源電壓 | -0,5V ~ +4,0V |
| 輸入電流 | 7mA |
| 輸出負載 | 15pF (HCMOS) |
| 啟動時間最大值 | 10 ms |
| 禁用延遲時間最大值 | 150 ns |
| 啟動最大延遲時間 | 10 ms |
| 備用電流最大值 | 10 μA (Pin #1=VIL) |
| 編碼 | 12.90329 |

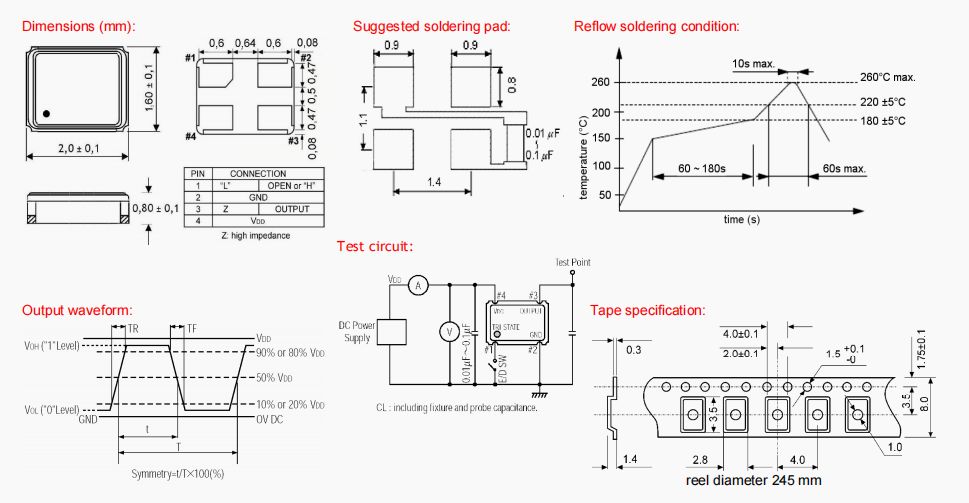

品尺寸圖.jpg)
12.90329晶振,智能語音助手晶振,GEYER環保有源晶振
.jpg)
| 原廠編碼 | 生產商品牌 | 型號 | 類型 | 頻率 | 輸出 | 電源電壓 | 頻率穩定度 |
| 12.95582 | Geyer晶振 | KXO-V95 | XO | 14.7456 MHz | - | - | ±50ppm |
| 12.95549 | Geyer晶振 | KXO-V95T | XO | 32 MHz | - | - | ±50ppm |
| 12.95531 | Geyer晶振 | KXO-V95T | XO | 3.6864 MHz | - | - | ±50ppm |
| 12.90328 | Geyer晶振 | KXO-V94T | XO | 16 MHz | CMOS | 3.3V | ±50ppm |
| 12.90321 | Geyer晶振 | KXO-V94 | XO | 14.7456 MHz | HCMOS | 3.3V | ±50ppm |
| 12.95545 | Geyer晶振 | KXO-V95T | XO | 20 MHz | - | - | ±50ppm |
| 12.95103 | Geyer晶振 | KXO-V96T | XO | 32 MHz | - | - | ±50ppm |
| 12.9558 | Geyer晶振 | KXO-V95 | XO | 3.579545 MHz | - | - | ±50ppm |
| 12.95094 | Geyer晶振 | KXO-V96T | XO | 14.31818 MHz | - | - | ±50ppm |
| 12.95034 | Geyer晶振 | KXO-V96T | XO | 20 MHz | - | - | ±50ppm |
| 12.95542 | Geyer晶振 | KXO-V95T | XO | 12 MHz | - | - | ±50ppm |
| 12.94474 | Geyer晶振 | KXO-V97T | XO | 27 MHz | - | - | ±100ppm |
| 12.90343 | Geyer晶振 | KXO-V94T | XO | 12 MHz | - | - | ±50ppm |
| 12.90325 | Geyer晶振 | KXO-V94 | XO | 3.6864 MHz | HCMOS | 3.3V | ±50ppm |
| 12.90311 | Geyer晶振 | KXO-V94 | XO | 14.7456 MHz | HCMOS | 3.3V | ±100ppm |
| 12.95128 | Geyer晶振 | KXO-V96E | XO | 27 MHz | - | - | ±50ppm |
| 12.95102 | Geyer晶振 | KXO-V96T | XO | 80 MHz | - | - | ±50ppm |
| 12.90333 | Geyer晶振 | KXO-V94T | XO | 40 MHz | - | - | ±50ppm |
| 12.90337 | Geyer晶振 | KXO-V94T | XO | 26 MHz | - | - | ±50ppm |
| 12.94273 | Geyer晶振 | KXO-V97T | XO | 32 MHz | - | - | ±100ppm |
| 12.94365 | Geyer晶振 | KXO-V97T | XO | 14.31818 MHz | - | - | ±100ppm |
| 12.95546 | Geyer晶振 | KXO-V95T | XO | 26 MHz | - | - | ±50ppm |
| 12.92106 | Geyer晶振 | KXO-V97T | XO | 65 MHz | - | - | ±100ppm |
| 12.95571 | Geyer晶振 | KXO-V95T | XO | 32.768 kHz | - | - | ±30ppm |
| 12.90344 | Geyer晶振 | KXO-V94T | XO | 4 MHz | - | - | ±50ppm |
| 12.95538 | Geyer晶振 | KXO-V95 | XO | 27.12 MHz | - | - | ±50ppm |
| 12.94364 | Geyer晶振 | KXO-V97T | XO | 48 MHz | - | - | ±100ppm |
| 12.95568 | Geyer晶振 | KXO-V95F | XO | 48 MHz | - | - | ±50ppm |
| 12.90324 | Geyer晶振 | KXO-V94 | XO | 27 MHz | HCMOS | 3.3V | ±50ppm |
| 12.94609 | Geyer晶振 | KXO-V99 | XO | 1 MHz | - | - | ±50ppm |
| 12.95101 | Geyer晶振 | KXO-V96T | XO | 48 MHz | - | - | ±50ppm |
| 12.92146 | Geyer晶振 | KXO-V97T | XO | 22.1184 MHz | - | - | ±100ppm |
| 12.90327 | Geyer晶振 | KXO-V94T | XO | 48 MHz | HCMOS | 3.3V | ±50ppm |
| 12.95091 | Geyer晶振 | KXO-V96T | XO | 10 MHz | - | - | ±50ppm |
| 12.94449 | Geyer晶振 | KXO-V97T | XO | 18.432 MHz | - | - | ±100ppm |
| 12.94456 | Geyer晶振 | KXO-V97T | XO | 3.6864 MHz | - | - | ±100ppm |
| 12.95551 | Geyer晶振 | KXO-V95T | XO | 48 MHz | - | - | ±50ppm |
| 12.90322 | Geyer晶振 | KXO-V94T | XO | 20 MHz | CMOS | 3.3V | ±50ppm |
| 12.95524 | Geyer晶振 | KXO-V95E | XO | 25 MHz | - | - | ±100ppm |
| 12.9034 | Geyer晶振 | KXO-V94T | XO | 32.768 kHz | - | - | ±20ppm |
| 12.95543 | Geyer晶振 | KXO-V95T | XO | 14.31818 MHz | - | - | ±50ppm |
| 12.95104 | Geyer晶振 | KXO-V96-18 | XO | 32.768 kHz | - | - | ±50ppm |
| 12.94422 | Geyer晶振 | KXO-V97T | XO | 11.0592 MHz | - | - | ±100ppm |
| 12.95548 | Geyer晶振 | KXO-V95T | XO | 4 MHz | - | - | ±50ppm |
| 12.90307 | Geyer晶振 | KXO-V94 | XO | 1.8432 MHz | HCMOS | 3.3V | ±50ppm |
| 12.70004 | Geyer晶振 | KXO-56T | XO | 33 MHz | - | 3.3V | ±50ppm |
| 12.96745 | Geyer晶振 | KXO-75R | VCXO | 24.576 MHz | - | 3.3V | ±50ppm |
| 12.94201 | Geyer晶振 | KXO-97 | XO | 2.4576 MHz | - | 5V | ±50ppm |
| 12.94202 | Geyer晶振 | KXO-97 | XO | 3.6864 MHz | - | 5V | ±50ppm |
| 12.94205 | Geyer晶振 | KXO-97 | XO | 6 MHz | - | 5V | ±50ppm |
| 12.94206 | Geyer晶振 | KXO-97 | XO | 6.144 MHz | - | 5V | ±50ppm |
| 12.94207 | Geyer晶振 | KXO-97 | XO | 8 MHz | - | 5V | ±50ppm |
| 12.94209 | Geyer晶振 | KXO-97 | XO | 10 MHz | - | 5V | ±50ppm |
| 12.94210 | Geyer晶振 | KXO-97 | XO | 11.0592 MHz | - | 5V | ±50ppm |
| 12.94211 | Geyer晶振 | KXO-97 | XO | 12 MHz | - | 5V | ±50ppm |
| 12.94212 | Geyer晶振 | KXO-97 | XO | 12.288 MHz | - | 5V | ±50ppm |
| 12.94213 | Geyer晶振 | KXO-97 | XO | 14.31818 MHz | - | 5V | ±50ppm |
| 12.94214 | Geyer晶振 | KXO-97 | XO | 14.7456 MHz | - | 5V | ±50ppm |
| 12.94215 | Geyer晶振 | KXO-97 | XO | 16 MHz | - | 5V | ±50ppm |
| 12.94216 | Geyer晶振 | KXO-97 | XO | 18.432 MHz | - | 5V | ±50ppm |
| 12.94219 | Geyer晶振 | KXO-97 | XO | 20 MHz | - | 5V | ±50ppm |
| 12.94220 | Geyer晶振 | KXO-97 | XO | 22.1184 MHz | - | 5V | ±50ppm |
| 12.94221 | Geyer晶振 | KXO-97 | XO | 24 MHz | - | 5V | ±50ppm |
| 12.94222 | Geyer晶振 | KXO-97 | XO | 30 MHz | - | 5V | ±50ppm |
| 12.94223 | Geyer晶振 | KXO-97 | XO | 32 MHz | - | 5V | ±50ppm |
| 12.94227 | Geyer晶振 | KXO-97 | XO | 48 MHz | - | 5V | ±50ppm |
| 12.94228 | Geyer晶振 | KXO-97 | XO | 50 MHz | - | 5V | ±50ppm |
| 12.94229 | Geyer晶振 | KXO-97 | XO | 64 MHz | - | 5V | ±50ppm |
| 12.94230 | Geyer晶振 | KXO-97 | XO | 66 MHz | - | 5V | ±50ppm |
| 12.94239 | Geyer晶振 | KXO-97 | XO | 3.579545 MHz | - | 5V | ±50ppm |
| 12.94242 | Geyer晶振 | KXO-97 | XO | 24.576 MHz | - | 5V | ±50ppm |
| 12.94259 | Geyer晶振 | KXO-97 | XO | 9.8304 MHz | - | 5V | ±50ppm |
| 12.94267 | Geyer晶振 | KXO-97 | XO | 60 MHz | - | 5V | ±50ppm |
| 12.94287 | Geyer晶振 | KXO-97T | XO | 20 MHz | - | 5V | ±100ppm |
| 12.94289 | Geyer晶振 | KXO-97T | XO | 16 MHz | - | 5V | ±100ppm |
| 12.94295 | Geyer晶振 | KXO-97T | XO | 40 MHz | - | 5V | ±100ppm |
| 12.94591 | Geyer晶振 | KXO-97T | XO | 64 MHz | - | 5V | ±50ppm |
| 12.91528 | Geyer晶振 | KXO-210 | XO | 32 MHz | - | 5V | ±100ppm |
| 12.75000 | Geyer晶振 | KXO-V32T | XO | 32.768 kHz | - | 3.3V | ±20ppm |
| 12.93400 | Geyer晶振 | KXO-V63T | VCXO | 74.25 MHz | LVDS | 3.3V | ±50ppm |
| 12.93401 | Geyer晶振 | KXO-V63T | VCXO | 74.176 MHz | LVDS | 3.3V | ±50ppm |
| 12.73000 | Geyer晶振 | KXO-V93T | XO | 20 MHz | - | 3.3V | ±30ppm |
| 12.73002 | Geyer晶振 | KXO-V93T | XO | 40 MHz | - | 3.3V | ±30ppm |
| 12.73003 | Geyer晶振 | KXO-V93T | XO | 50 MHz | - | 3.3V | ±30ppm |
| 12.73004 | Geyer晶振 | KXO-V93T | XO | 48 MHz | - | 3.3V | ±30ppm |
| 12.73009 | Geyer晶振 | KXO-V93T | XO | 24 MHz | - | 3.3V | ±30ppm |
| 12.73010 | Geyer晶振 | KXO-V93T | XO | 8 MHz | - | 3.3V | ±30ppm |
| 12.73011 | Geyer晶振 | KXO-V93T | XO | 3.6864 MHz | - | 3.3V | ±30ppm |
| 12.73012 | Geyer晶振 | KXO-V93T | XO | 16 MHz | - | 3.3V | ±30ppm |
| 12.73013 | Geyer晶振 | KXO-V93T | XO | 25 MHz | - | 3.3V | ±30ppm |
| 12.90305 | Geyer晶振 | KXO-V94 | XO | 20 MHz | - | 3.3V | ±50ppm |
| 12.90308 | Geyer晶振 | KXO-V94 | XO | 3.6864 MHz | - | 3.3V | ±50ppm |
| 12.90309 | Geyer晶振 | KXO-V94 | XO | 25 MHz | - | 3.3V | ±50ppm |
| 12.9031 | Geyer晶振 | KXO-V94 | XO | 1.8432 MHz | - | 3.3V | ±50ppm |
| 12.90302 | Geyer晶振 | KXO-V94T | XO | 8 MHz | - | 3.3V | ±50ppm |
| 12.90323 | Geyer晶振 | KXO-V94T | XO | 25 MHz | - | 3.3V | ±50ppm |
| 12.90329 | Geyer晶振 | KXO-V94T | XO | 32 MHz | - | 3.3V | ±50ppm |
| 12.9033 | Geyer晶振 | KXO-V94T | XO | 10 MHz | - | 3.3V | ±100ppm |
| 12.9034 | Geyer晶振 | KXO-V94T | XO | 32.768 kHz | - | 3.3V | ±20ppm |
| 12.90345 | Geyer晶振 | KXO-V94T | XO | 50 MHz | - | 3.3V | ±50ppm |
| 12.95508 | Geyer晶振 | KXO-V95 | XO | 14.31818 MHz | - | 3.3V | ±50ppm |
| 12.95510 | Geyer晶振 | KXO-V95 | XO | 24 MHz | - | 3.3V | ±50ppm |
| 12.95519 | Geyer晶振 | KXO-V95T | XO | 8 MHz | - | 3.3V | ±50ppm |
| 12.95533 | Geyer晶振 | KXO-V95T | XO | 25 MHz | - | 3.3V | ±50ppm |
| 12.95534 | Geyer晶振 | KXO-V95T | XO | 6 MHz | - | 3.3V | ±50ppm |
| 12.95544 | Geyer晶振 | KXO-V95T | XO | 16 MHz | - | 3.3V | ±50ppm |
| 12.9555 | Geyer晶振 | KXO-V95T | XO | 40 MHz | - | 3.3V | ±50ppm |
| 12.95562 | Geyer晶振 | KXO-V95T | XO | 80 MHz | - | 3.3V | ±50ppm |
| 12.95565 | Geyer晶振 | KXO-V95T | XO | 1.8432 MHz | - | 3.3V | ±50ppm |
| 12.95047 | Geyer晶振 | KXO-V96 | XO | 26 MHz | - | 3.3V | ±50ppm |
| 12.95127 | Geyer晶振 | KXO-V96F | XO | 25 MHz | - | 3.3V | ±50ppm |
| 12.95141 | Geyer晶振 | KXO-V96F | XO | 27 MHz | - | 3.3V | ±50ppm |
| 12.95027 | Geyer晶振 | KXO-V96T | XO | 50 MHz | - | 3.3V | ±50ppm |
| 12.95028 | Geyer晶振 | KXO-V96T | XO | 12 MHz | - | 3.3V | ±50ppm |
| 12.95049 | Geyer晶振 | KXO-V96T | XO | 25 MHz | - | 3.3V | ±50ppm |
| 12.9505 | Geyer晶振 | KXO-V96T | XO | 8 MHz | - | 3.3V | ±50ppm |
| 12.95059 | Geyer晶振 | KXO-V96T | XO | 66 MHz | - | 3.3V | ±50ppm |
| 12.95081 | Geyer晶振 | KXO-V96T | XO | 100 MHz | - | 3.3V | ±50ppm |
| 12.95089 | Geyer晶振 | KXO-V96T | XO | 13.56 MHz | - | 3.3V | ±50ppm |
| 12.95092 | Geyer晶振 | KXO-V96T | XO | 11.0592 MHz | - | 3.3V | ±50ppm |
| 12.95093 | Geyer晶振 | KXO-V96T | XO | 125 MHz | - | 3.3V | ±50ppm |
| 12.95095 | Geyer晶振 | KXO-V96T | XO | 16 MHz | - | 3.3V | ±50ppm |
| 12.95100 | Geyer晶振 | KXO-V96T | XO | 40 MHz | - | 3.3V | ±50ppm |
| 12.95115 | Geyer晶振 | KXO-V96T | XO | 24.576 MHz | - | 3.3V | ±50ppm |
| 12.95134 | Geyer晶振 | KXO-V96T | XO | 32.768 kHz | - | 3.3V | ±50ppm |
| 12.95139 | Geyer晶振 | KXO-V96T | XO | 133 MHz | - | 3.3V | ±50ppm |
| 12.94264 | Geyer晶振 | KXO-V97 | XO | 14.31818 MHz | - | 3.3V | ±50ppm |
| 12.94269 | Geyer晶振 | KXO-V97 | XO | 3.579545 MHz | - | 3.3V | ±50ppm |
| 12.94272 | Geyer晶振 | KXO-V97 | XO | 16 MHz | - | 3.3V | ±50ppm |
| 12.94274 | Geyer晶振 | KXO-V97 | XO | 40 MHz | - | 3.3V | ±50ppm |
| 12.94277 | Geyer晶振 | KXO-V97 | XO | 50 MHz | - | 3.3V | ±50ppm |
| 12.94335 | Geyer晶振 | KXO-V97 | XO | 25 MHz | - | 3.3V | ±50ppm |
| 12.94336 | Geyer晶振 | KXO-V97 | XO | 27 MHz | - | 3.3V | ±50ppm |
| 12.94338 | Geyer晶振 | KXO-V97 | XO | 1.8432 MHz | - | 3.3V | ±50ppm |
| 12.94340 | Geyer晶振 | KXO-V97 | XO | 24 MHz | - | 3.3V | ±50ppm |
| 12.94346 | Geyer晶振 | KXO-V97 | XO | 10 MHz | - | 3.3V | ±50ppm |
| 12.94354 | Geyer晶振 | KXO-V97 | XO | 5 MHz | - | 3.3V | ±50ppm |
| 12.94355 | Geyer晶振 | KXO-V97 | XO | 100 MHz | - | 3.3V | ±50ppm |
| 12.94361 | Geyer晶振 | KXO-V97 | XO | 28.63636 MHz | - | 3.3V | ±50ppm |
| 12.94371 | Geyer晶振 | KXO-V97 | XO | 7.3728 MHz | - | 3.3V | ±50ppm |
| 12.94372 | Geyer晶振 | KXO-V97 | XO | 8 MHz | - | 3.3V | ±50ppm |
| 12.94374 | Geyer晶振 | KXO-V97 | XO | 4.9152 MHz | - | 3.3V | ±50ppm |
| 12.94376 | Geyer晶振 | KXO-V97 | XO | 2.4576 MHz | - | 3.3V | ±50ppm |
| 12.94377 | Geyer晶振 | KXO-V97 | XO | 3.6864 MHz | - | 3.3V | ±50ppm |
| 12.94383 | Geyer晶振 | KXO-V97 | XO | 33.333 MHz | - | 3.3V | ±50ppm |
| 12.94384 | Geyer晶振 | KXO-V97 | XO | 18.432 MHz | - | 3.3V | ±50ppm |
| 12.94446 | Geyer晶振 | KXO-V97 | XO | 29.4912 MHz | - | 3.3V | ±100ppm |
| 12.94450 | Geyer晶振 | KXO-V97 | XO | 10 MHz | - | 3.3V | ±100ppm |
| 12.94451 | Geyer晶振 | KXO-V97 | XO | 98.304 MHz | - | 3.3V | ±100ppm |
| 12.94471 | Geyer晶振 | KXO-V97 | XO | 98.304 MHz | - | 1.8V | ±50ppm |
| 12.94496 | Geyer晶振 | KXO-V97 | XO | 32.768 kHz | - | 3.3V | ±50ppm |
| 12.94555 | Geyer晶振 | KXO-V97 | XO | 100 MHz | - | 2.5V | ±50ppm |
| 12.92112 | Geyer晶振 | KXO-V97T | XO | 90 MHz | - | 3.3V | ±100ppm |
| 12.92125 | Geyer晶振 | KXO-V97T | XO | 156.25 MHz | - | 3.3V | ±50ppm |
| 12.94108 | Geyer晶振 | KXO-V97T | XO | 50 MHz | - | 3.3V | ±100ppm |
| 12.94394 | Geyer晶振 | KXO-V97T | XO | 4 MHz | - | 3.3V | ±100ppm |
| 12.94403 | Geyer晶振 | KXO-V97T | XO | 25 MHz | - | 3.3V | ±100ppm |
| 12.94408 | Geyer晶振 | KXO-V97T | XO | 66 MHz | - | 3.3V | ±100ppm |
| 12.94415 | Geyer晶振 | KXO-V97T | XO | 1.8432 MHz | - | 3.3V | ±100ppm |
| 12.94419 | Geyer晶振 | KXO-V97T | XO | 60 MHz | - | 3.3V | ±100ppm |
| 12.94425 | Geyer晶振 | KXO-V97T | XO | 98.304 MHz | - | 3.3V | ±100ppm |
| 12.94428 | Geyer晶振 | KXO-V97T | XO | 7.3728 MHz | - | 3.3V | ±100ppm |
| 12.94429 | Geyer晶振 | KXO-V97T | XO | 14.7456 MHz | - | 3.3V | ±100ppm |
| 12.94445 | Geyer晶振 | KXO-V97T | XO | 12.288 MHz | - | 3.3V | ±100ppm |
| 12.94462 | Geyer晶振 | KXO-V97T | XO | 125 MHz | - | 3.3V | ±100ppm |
| 12.94470 | Geyer晶振 | KXO-V97T | XO | 8 MHz | - | 3.3V | ±100ppm |
| 12.94514 | Geyer晶振 | KXO-V97T | XO | 32.768 kHz | - | 3.3V | ±100ppm |
| 12.94583 | Geyer晶振 | KXO-V97T | XO | 10 MHz | - | 3.3V | ±50ppm |
| 12.94585 | Geyer晶振 | KXO-V97T | XO | 14.7456 MHz | - | 3.3V | ±50ppm |
| 12.94587 | Geyer晶振 | KXO-V97T | XO | 3.6864 MHz | - | 3.3V | ±50ppm |
| 12.94604 | Geyer晶振 | KXO-V99 | XO | 50 MHz | - | 3.3V | ±50ppm |
| 12.94605 | Geyer晶振 | KXO-V99 | XO | 80 MHz | - | 3.3V | ±50ppm |
| 12.94606 | Geyer晶振 | KXO-V99 | XO | 100 MHz | - | 3.3V | ±50ppm |
| 12.94608 | Geyer晶振 | KXO-V99 | XO | 25 MHz | - | 3.3V | ±50ppm |
| 12.94628 | Geyer晶振 | KXO-V99 | XO | 24 MHz | - | 3.3V | ±50ppm |
| 12.94636 | Geyer晶振 | KXO-V99 | XO | 100 MHz | - | 2.5V | ±50ppm |
| 12.94645 | Geyer晶振 | KXO-V99 | XO | 98.304 MHz | - | 1.8V | ±50ppm |
系我們.jpg)
深 圳 市 金 洛 電 子 有 限 公 司代理:EPSON,KDS,SEIKO,CITIZEN
電話:0755-27837162
手機:13510569637
郵箱:jinluodz@163.com
Q Q:657116624
地址:深圳市寶安41區甲岸路19號
網址:http://www.jisiw.com
業務經理
客服經理
