- 規格型號：94738557
- 頻率：13MHz
- 尺寸：2.5×2.0×0.8mm
- 產品描述：X1G004171002100晶振,SG-210STF晶振,頻率13MHz,精度50ppm,尺寸大小2520mm,愛普生石英貼片振蕩器,智能家居應用晶振,工業設備晶振,無線模塊應用晶振,5G室外基站晶振,衛星通訊晶振

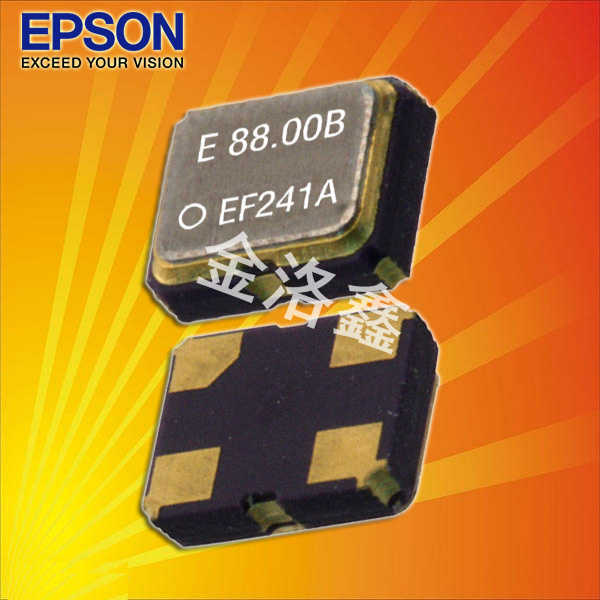

X1G004171002100|13MHz|50ppm|2520mm
.jpg)
X1G004171002100|13MHz|50ppm|2520mm，X1G004171002100晶振,SG-210STF晶振,頻率13MHz,精度50ppm,尺寸大小2520mm,愛普生石英貼片振蕩器,智能家居應用晶振,工業設備晶振,無線模塊應用晶振,5G室外基站晶振,衛星通訊晶振

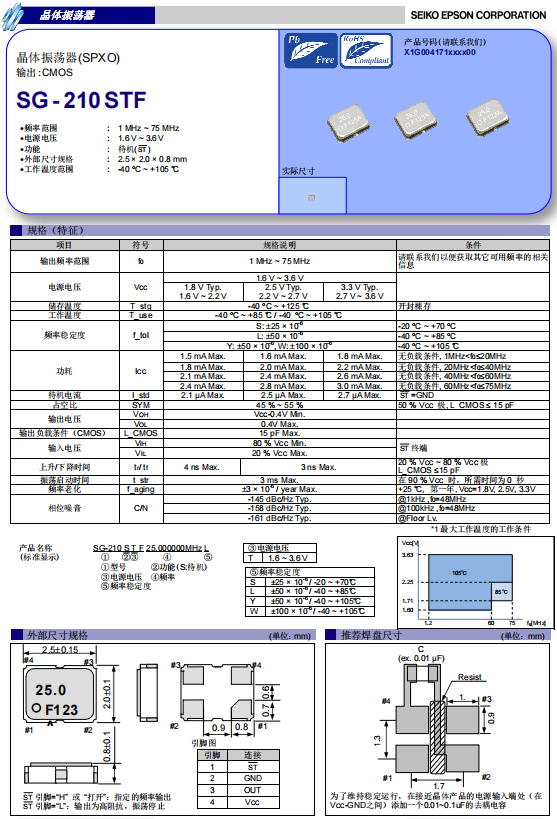

X1G004171002100|13MHz|50ppm|2520mm,參數圖
|
晶振規格 |
單位 |
SG-210STF |
石英晶振基本條件 |
|
標準頻率 |
f_nom |
13MHZ |
標準頻率 |
|
儲存溫度 |
T_stg |
-40°C ～ +125°C |
裸存 |
|
工作溫度 |
T_use |
-40°C ～ +85°C |
標準溫度 |
|
電源電壓 |
VCC |
1.6~3.6V |
|
|
頻率公差 |
f_— l |
±50× 10-6 (標準), |
+25°C 對于超出標準的規格說明,請聯系我們以便獲取相關的信息, |
|
功耗電流 |
Icc |
≤ 1.8 mA |
超出標準的規格請聯系我們.http://www.jisiw.com |
|
輸出負載條件 |
L_CMOS |
15pF Max |
不同負載電容要求,請聯系我們. |
|
上升/下降時間 |
tr/tf | 3nsMax | 20%Vcc~80%Vcc極 L _CMOS≤15 pF |
|
頻率老化 |
f_age |
±3 × 10-6 / year Max. |
+25°C,第一年 |
.jpg)
X1G004171002100|13MHz|50ppm|2520mm,尺寸圖
| 編碼 | Model/型號 | Frequency/頻率 | LxWxH/尺寸 | Output Wave/輸出方式 | Supply Voltage/電源電壓 | Ope Temperature/工作溫度 |
| X1G0039510014 | SG-210SEH | 98.304000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.620 to 1.890 V | -40 to 85 °C |
| X1G0041710002 | SG-210STF | 33.300000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V | -40 to 85 °C |
| X1G0041710005 | SG-210STF | 1.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V | -40 to 85 °C |
| X1G0041710006 | SG-210STF | 1.843200 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V | -40 to 85 °C |
| X1G0041710007 | SG-210STF | 2.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V | -40 to 85 °C |
| X1G0041710008 | SG-210STF | 3.686400 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V | -40 to 85 °C |
| X1G0041710009 | SG-210STF | 4.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V | -40 to 85 °C |
| X1G0041710010 | SG-210STF | 4.096000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V | -40 to 85 °C |
| X1G0041710011 | SG-210STF | 5.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V | -40 to 85 °C |
| X1G0041710012 | SG-210STF | 6.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V | -40 to 85 °C |
| X1G0041710013 | SG-210STF | 6.144000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V | -40 to 85 °C |
| X1G0041710014 | SG-210STF | 7.372800 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V | -40 to 85 °C |
| X1G0041710015 | SG-210STF | 8.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V | -40 to 85 °C |
| X1G0041710016 | SG-210STF | 10.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V | -40 to 85 °C |
| X1G0041710017 | SG-210STF | 11.289600 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V | -40 to 85 °C |
| X1G0041710018 | SG-210STF | 12.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V | -40 to 85 °C |
| X1G0041710019 | SG-210STF | 12.288000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V | -40 to 85 °C |
| X1G0041710020 | SG-210STF | 12.500000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V | -40 to 85 °C |
| X1G0041710021 | SG-210STF | 13.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V | -40 to 85 °C |
| X1G0041710022 | SG-210STF | 13.500000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V | -40 to 85 °C |
| X1G0041710023 | SG-210STF | 13.560000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V | -40 to 85 °C |
| X1G0041710024 | SG-210STF | 14.318180 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V | -40 to 85 °C |
| X1G0041710025 | SG-210STF | 14.745600 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V | -40 to 85 °C |
| X1G0041710026 | SG-210STF | 15.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V | -40 to 85 °C |
| X1G0041710027 | SG-210STF | 16.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V | -40 to 85 °C |
| X1G0041710028 | SG-210STF | 19.200000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V | -40 to 85 °C |
| X1G0041710029 | SG-210STF | 20.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V | -40 to 85 °C |
| X1G0041710030 | SG-210STF | 22.579200 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V | -40 to 85 °C |
| X1G0041710031 | SG-210STF | 24.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V | -40 to 85 °C |
| X1G0041710032 | SG-210STF | 24.576000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V | -40 to 85 °C |
| X1G0041710033 | SG-210STF | 25.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V | -40 to 85 °C |
| X1G0041710034 | SG-210STF | 26.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V | -40 to 85 °C |
| X1G0041710035 | SG-210STF | 27.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V | -40 to 85 °C |
| X1G0041710036 | SG-210STF | 27.120000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V | -40 to 85 °C |
| X1G0041710037 | SG-210STF | 28.636360 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V | -40 to 85 °C |
| X1G0041710038 | SG-210STF | 29.491200 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V | -40 to 85 °C |
| X1G0041710039 | SG-210STF | 30.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V | -40 to 85 °C |
| X1G0041710040 | SG-210STF | 32.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V | -40 to 85 °C |
| X1G0041710041 | SG-210STF | 33.333000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V | -40 to 85 °C |
| X1G0041710042 | SG-210STF | 36.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V | -40 to 85 °C |
| X1G0041710043 | SG-210STF | 37.400000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V | -40 to 85 °C |
| X1G0041710044 | SG-210STF | 38.400000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V | -40 to 85 °C |
| X1G0041710045 | SG-210STF | 40.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V | -40 to 85 °C |
| X1G0041710046 | SG-210STF | 48.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V | -40 to 85 °C |
| X1G0041710047 | SG-210STF | 50.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V | -40 to 85 °C |
| X1G0041710048 | SG-210STF | 52.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V | -40 to 85 °C |
| X1G0041710049 | SG-210STF | 54.000000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V | -40 to 85 °C |
| X1G0041710052 | SG-210STF | 8.192000 MHz | 2.50 x 2.00 x 0.90 mm | CMOS | 1.600 to 3.600 V | -40 to 85 °C |
