- 規格型號：44171478
- 頻率：20MHz
- 尺寸：3.2×2.5×0.7mm
- 產品描述：日本愛普生晶振,FA-238石英晶振,Q22FA23800002晶振,頻率20MHz,3225mm晶振,負載18pf,工作溫度-20~70°C,小體積晶振,無鉛環保晶振,耐高溫晶振,移動電話晶振,藍牙模塊晶振,無線通信設備晶振,便攜式設備晶振,MPU時鐘晶振....
Q22FA23800002-20MHz-3225mm無源晶振-18pf
品說明.jpg)
.jpg)

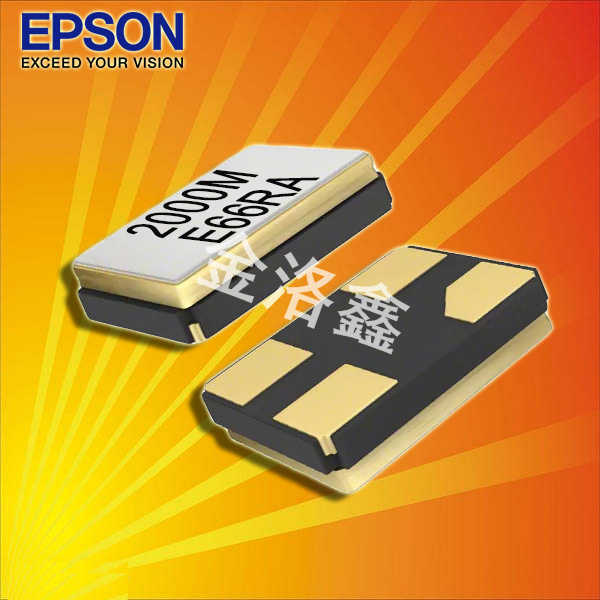

Q22FA23800002-20MHz-3225mm無源晶振-18pf,日本愛普生晶振,FA-238石英晶振,Q22FA23800002晶振,頻率20MHz,3225mm晶振,負載18pf,工作溫度-20~70°C,小體積晶振,無鉛環保晶振,耐高溫晶振,移動電話晶振,藍牙模塊晶振,無線通信設備晶振,便攜式設備晶振,MPU時鐘晶振.
品規格參數圖.jpg)

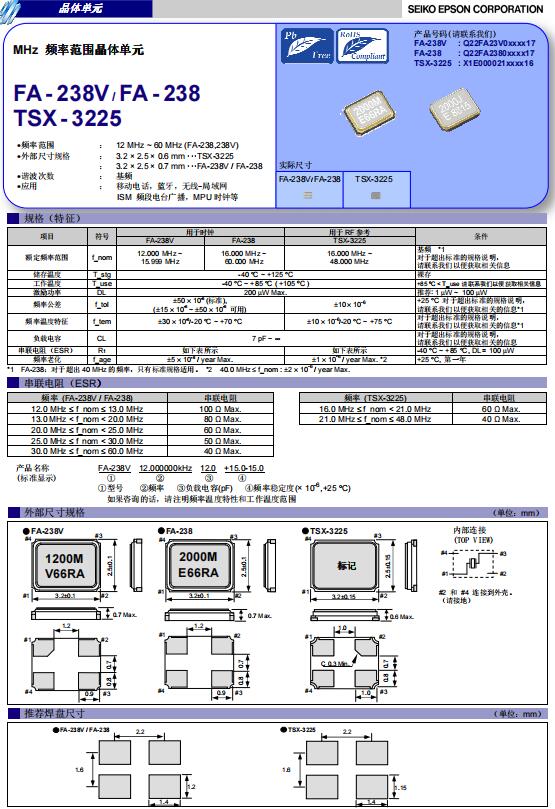

Q22FA23800002-20MHz-3225mm無源晶振-18pf,參數圖
| 項目 | 符號 | 規格說明 | 條件 |
| 額定頻率 | f_nom | 20MHz | 請聯系我們以便獲取其它可用頻率的相關信息 |
| 儲存溫度 | T_stg | -40℃~+125℃ | 裸存 |
| 工作溫度 | T_use | -20℃~ +70℃ | |
| 激勵功率 | DL | 200μW Max | 推薦1μW ~100μW |
| 頻率公差（標準） | f_tol | ±30 ppm | +25℃,超出標準的規格說明請聯系我們以便獲取相關信息 |
| 頻率溫度特征（標準） | f_tem | ±50 ppm |
-20 °C ~ +75 °C 對于超出標準的規格說明，
請聯系我們以便獲取相關信息
|
| 負載電容 | CL | 18pF | 可指定 |
| 串聯電阻 | R1 | 60Ω Max | |
| 頻率老化 | f_age | ±5 ppm | +25℃,第一年 |
品尺寸圖.jpg)

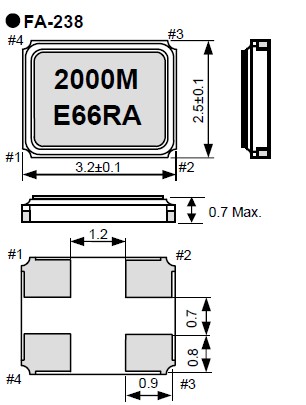

Q22FA23800002-20MHz-3225mm無源晶振-18pf 尺寸圖
.jpg)
| 編碼 | 尺寸 | 型號 | 頻率 | 負載 | 頻率容差 @+25°C | 頻率穩定度 |
| Q22FA23800001 | 3.2 x 2.5 x 0.7mm | FA-238 | 20.000000 MHz | 12 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800002 | 3.2 x 2.5 x 0.7mm | FA-238 | 20.000000 MHz | 18 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800011 | 3.2 x 2.5 x 0.7mm | FA-238 | 16.934400 MHz | 10 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800013 | 3.2 x 2.5 x 0.7mm | FA-238 | 25.000000 MHz | 10 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800022 | 3.2 x 2.5 x 0.7mm | FA-238 | 27.000000 MHz | 12 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800028 | 3.2 x 2.5 x 0.7mm | FA-238 | 27.000000 MHz | 18 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800035 | 3.2 x 2.5 x 0.7mm | FA-238 | 20.000000 MHz | 12 pF | +/-30 ppm | +/-30 ppm |
| Q22FA23800041 | 3.2 x 2.5 x 0.7mm | FA-238 | 24.000000 MHz | 20 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800044 | 3.2 x 2.5 x 0.7mm | FA-238 | 24.000000 MHz | 7 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800047 | 3.2 x 2.5 x 0.7mm | FA-238 | 16.000000 MHz | 7 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800048 | 3.2 x 2.5 x 0.7mm | FA-238 | 49.152000 MHz | 12 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800063 | 3.2 x 2.5 x 0.7mm | FA-238 | 24.576000 MHz | 12 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800065 | 3.2 x 2.5 x 0.7mm | FA-238 | 24.000000 MHz | 12 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800075 | 3.2 x 2.5 x 0.7mm | FA-238 | 50.000000 MHz | 12 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800076 | 3.2 x 2.5 x 0.7mm | FA-238 | 48.000000 MHz | 10 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800078 | 3.2 x 2.5 x 0.7mm | FA-238 | 48.000000 MHz | 18 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800079 | 3.2 x 2.5 x 0.7mm | FA-238 | 27.000000 MHz | 10 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800085 | 3.2 x 2.5 x 0.7mm | FA-238 | 48.000000 MHz | 12 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800088 | 3.2 x 2.5 x 0.7mm | FA-238 | 24.576000 MHz | 12 pF | +/-30 ppm | +/-30 ppm |
| Q22FA23800089 | 3.2 x 2.5 x 0.7mm | FA-238 | 24.000000 MHz | 16 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800091 | 3.2 x 2.5 x 0.7mm | FA-238 | 18.432000 MHz | 20 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800092 | 3.2 x 2.5 x 0.7mm | FA-238 | 25.000000 MHz | 20 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800093 | 3.2 x 2.5 x 0.7mm | FA-238 | 18.432000 MHz | 12 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800095 | 3.2 x 2.5 x 0.7mm | FA-238 | 25.000000 MHz | 12 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800098 | 3.2 x 2.5 x 0.7mm | FA-238 | 30.000000 MHz | 10 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800103 | 3.2 x 2.5 x 0.7mm | FA-238 | 27.000000 MHz | 16 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800114 | 3.2 x 2.5 x 0.7mm | FA-238 | 24.000000 MHz | 18 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800120 | 3.2 x 2.5 x 0.7mm | FA-238 | 24.576000 MHz | 18 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800127 | 3.2 x 2.5 x 0.7mm | FA-238 | 18.432000 MHz | 16 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800128 | 3.2 x 2.5 x 0.7mm | FA-238 | 18.432000 MHz | 18 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800129 | 3.2 x 2.5 x 0.7mm | FA-238 | 22.579200 MHz | 10 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800133 | 3.2 x 2.5 x 0.7mm | FA-238 | 16.000000 MHz | 12 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800137 | 3.2 x 2.5 x 0.7mm | FA-238 | 40.000000 MHz | 18 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800138 | 3.2 x 2.5 x 0.7mm | FA-238 | 27.000000 MHz | 8 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800140 | 3.2 x 2.5 x 0.7mm | FA-238 | 48.000000 MHz | 16 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800141 | 3.2 x 2.5 x 0.7mm | FA-238 | 32.000000 MHz | 10 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800146 | 3.2 x 2.5 x 0.7mm | FA-238 | 26.000000 MHz | 10 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800147 | 3.2 x 2.5 x 0.7mm | FA-238 | 26.000000 MHz | 20 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800148 | 3.2 x 2.5 x 0.7mm | FA-238 | 48.000000 MHz | 12 pF | +/-30 ppm | +/-30 ppm |
| Q22FA23800149 | 3.2 x 2.5 x 0.7mm | FA-238 | 18.432000 MHz | 10 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800156 | 3.2 x 2.5 x 0.7mm | FA-238 | 24.576000 MHz | 10 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800165 | 3.2 x 2.5 x 0.7mm | FA-238 | 25.000000 MHz | 12 pF | +/-30 ppm | +/-30 ppm |
| Q22FA23800170 | 3.2 x 2.5 x 0.7mm | FA-238 | 20.000000 MHz | 20 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800179 | 3.2 x 2.5 x 0.7mm | FA-238 | 16.000000 MHz | 12.5 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800190 | 3.2 x 2.5 x 0.7mm | FA-238 | 24.576000 MHz | 8 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800198 | 3.2 x 2.5 x 0.7mm | FA-238 | 24.576000 MHz | 7 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800205 | 3.2 x 2.5 x 0.7mm | FA-238 | 19.200000 MHz | 10 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800216 | 3.2 x 2.5 x 0.7mm | FA-238 | 16.000000 MHz | 12 pF | +/-30 ppm | +/-30 ppm |
| Q22FA23800238 | 3.2 x 2.5 x 0.7mm | FA-238 | 24.000000 MHz | 20 pF | +/-30 ppm | +/-30 ppm |
| Q22FA23800240 | 3.2 x 2.5 x 0.7mm | FA-238 | 24.000000 MHz | 30 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800244 | 3.2 x 2.5 x 0.7mm | FA-238 | 48.000000 MHz | 20 pF | +/-30 ppm | +/-30 ppm |
| Q22FA23800245 | 3.2 x 2.5 x 0.7mm | FA-238 | 24.000000 MHz | 30 pF | +/-30 ppm | +/-30 ppm |
| Q22FA23800251 | 3.2 x 2.5 x 0.7mm | FA-238 | 36.864000 MHz | 8 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800263 | 3.2 x 2.5 x 0.7mm | FA-238 | 16.000000 MHz | 9 pF | +/-15 ppm | +/-30 ppm |
| Q22FA23800264 | 3.2 x 2.5 x 0.7mm | FA-238 | 20.000000 MHz | 10 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800269 | 3.2 x 2.5 x 0.7mm | FA-238 | 27.000000 MHz | 9 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800291 | 3.2 x 2.5 x 0.7mm | FA-238 | 27.000000 MHz | 7 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800305 | 3.2 x 2.5 x 0.7mm | FA-238 | 24.576000 MHz | 16 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800312 | 3.2 x 2.5 x 0.7mm | FA-238 | 28.636360 MHz | 16 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800322 | 3.2 x 2.5 x 0.7mm | FA-238 | 20.000000 MHz | 12.5 pF | +/-30 ppm | +/-30 ppm |
| Q22FA23800329 | 3.2 x 2.5 x 0.7mm | FA-238 | 32.000000 MHz | 18 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800338 | 3.2 x 2.5 x 0.7mm | FA-238 | 24.000000 MHz | 18 pF | +/-15 ppm | +/-30 ppm |
| Q22FA23800350 | 3.2 x 2.5 x 0.7mm | FA-238 | 20.000000 MHz | 16 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800353 | 3.2 x 2.5 x 0.7mm | FA-238 | 33.330000 MHz | 12 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800355 | 3.2 x 2.5 x 0.7mm | FA-238 | 27.000000 MHz | 7 pF | +/-30 ppm | +/-30 ppm |
| Q22FA23800356 | 3.2 x 2.5 x 0.7mm | FA-238 | 45.000000 MHz | 12 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800364 | 3.2 x 2.5 x 0.7mm | FA-238 | 48.000000 MHz | 7 pF | +/-30 ppm | +/-30 ppm |
| Q22FA23800367 | 3.2 x 2.5 x 0.7mm | FA-238 | 16.000000 MHz | 18 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800405 | 3.2 x 2.5 x 0.7mm | FA-238 | 40.000000 MHz | 10 pF | +/-50 ppm | +/-50 ppm |
| Q22FA23800415 | 3.2 x 2.5 x 0.7mm | FA-238 | 27.120000 MHz | 12 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800419 | 3.2 x 2.5 x 0.7mm | FA-238 | 40.000000 MHz | 7 pF | +/-50 ppm | +/-50 ppm |
| Q22FA23800421 | 3.2 x 2.5 x 0.7mm | FA-238 | 16.000000 MHz | 10 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800423 | 3.2 x 2.5 x 0.7mm | FA-238 | 30.000000 MHz | 18 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800432 | 3.2 x 2.5 x 0.7mm | FA-238 | 50.000000 MHz | 10 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800447 | 3.2 x 2.5 x 0.7mm | FA-238 | 48.000000 MHz | 10 pF | +/-30 ppm | +/-30 ppm |
| Q22FA23800448 | 3.2 x 2.5 x 0.7mm | FA-238 | 50.000000 MHz | 7 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800458 | 3.2 x 2.5 x 0.7mm | FA-238 | 16.384000 MHz | 10 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800464 | 3.2 x 2.5 x 0.7mm | FA-238 | 33.333000 MHz | 10 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800478 | 3.2 x 2.5 x 0.7mm | FA-238 | 25.000000 MHz | 18 pF | +/-30 ppm | +/-30 ppm |
| Q22FA23800480 | 3.2 x 2.5 x 0.7mm | FA-238 | 27.000000 MHz | 10 pF | +/-30 ppm | +/-30 ppm |
| Q22FA23800483 | 3.2 x 2.5 x 0.7mm | FA-238 | 16.000000 MHz | 10 pF | +/-20 ppm | +/-30 ppm |
| Q22FA23800489 | 3.2 x 2.5 x 0.7mm | FA-238 | 27.000000 MHz | 10 pF | +/-20 ppm | +/-30 ppm |
| Q22FA23800547 | 3.2 x 2.5 x 0.7mm | FA-238 | 25.000000 MHz | 16 pF | +/-30 ppm | +/-30 ppm |
| Q22FA23800553 | 3.2 x 2.5 x 0.7mm | FA-238 | 30.000000 MHz | 16 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800573 | 3.2 x 2.5 x 0.7mm | FA-238 | 48.000000 MHz | 10 pF | +/-50 ppm | +/-50 ppm |
| Q22FA23800591 | 3.2 x 2.5 x 0.7mm | FA-238 | 24.000000 MHz | 8 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800594 | 3.2 x 2.5 x 0.7mm | FA-238 | 48.000000 MHz | 8 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800599 | 3.2 x 2.5 x 0.7mm | FA-238 | 27.000000 MHz | 16 pF | +/-30 ppm | +/-30 ppm |
| Q22FA23800608 | 3.2 x 2.5 x 0.7mm | FA-238 | 48.000000 MHz | 7 pF | +/-50 ppm | +/-50 ppm |
| Q22FA23800612 | 3.2 x 2.5 x 0.7mm | FA-238 | 44.000000 MHz | 10 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800620 | 3.2 x 2.5 x 0.7mm | FA-238 | 16.000000 MHz | 8 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800653 | 3.2 x 2.5 x 0.7mm | FA-238 | 25.000000 MHz | 7 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800666 | 3.2 x 2.5 x 0.7mm | FA-238 | 18.432000 MHz | 7 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800678 | 3.2 x 2.5 x 0.7mm | FA-238 | 25.000000 MHz | 20 pF | +/-30 ppm | +/-30 ppm |
| Q22FA23800683 | 3.2 x 2.5 x 0.7mm | FA-238 | 24.545454 MHz | 10 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800699 | 3.2 x 2.5 x 0.7mm | FA-238 | 33.330000 MHz | 10 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800702 | 3.2 x 2.5 x 0.7mm | FA-238 | 16.000000 MHz | 15 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800706 | 3.2 x 2.5 x 0.7mm | FA-238 | 27.000000 MHz | 8 pF | +/-30 ppm | +/-30 ppm |
| Q22FA23800716 | 3.2 x 2.5 x 0.7mm | FA-238 | 30.000000 MHz | 8 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800729 | 3.2 x 2.5 x 0.7mm | FA-238 | 20.000000 MHz | 7 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800745 | 3.2 x 2.5 x 0.7mm | FA-238 | 25.000000 MHz | 9 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800747 | 3.2 x 2.5 x 0.7mm | FA-238 | 19.200000 MHz | 10 pF | +/-30 ppm | +/-30 ppm |
| Q22FA23800752 | 3.2 x 2.5 x 0.7mm | FA-238 | 30.000000 MHz | 12 pF | +/-30 ppm | +/-30 ppm |
| Q22FA23800753 | 3.2 x 2.5 x 0.7mm | FA-238 | 33.333300 MHz | 10 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800755 | 3.2 x 2.5 x 0.7mm | FA-238 | 19.200000 MHz | 12 pF | +/-50 ppm | +/-30 ppm |
| Q22FA23800759 | 3.2 x 2.5 x 0.7mm | FA-238 | 27.000000 MHz | 9 pF | +/-30 ppm | +/-30 ppm |
| Q22FA23800775 | 3.2 x 2.5 x 0.7mm | FA-238 | 24.000000 MHz | 8 pF | +/-50 ppm | +/-50 ppm |
| Q22FA23800776 | 3.2 x 2.5 x 0.7mm | FA-238 | 25.000000 MHz | 8 pF | +/-50 ppm | +/-50 ppm |
| Q22FA23800778 | 3.2 x 2.5 x 0.7mm | FA-238 | 49.152000 MHz | 20 pF | +/-20 ppm | +/-30 ppm |
| Q22FA23800792 | 3.2 x 2.5 x 0.7mm | FA-238 | 24.576000 MHz | 10 pF | +/-30 ppm | +/-30 ppm |
| Q22FA23800817 | 3.2 x 2.5 x 0.7mm | FA-238 | 24.000000 MHz | 10 pF | +/-30 ppm | +/-30 ppm |
系我們.jpg)
深 圳 市 金 洛 電 子 有 限 公 司代理:EPSON,KDS,SEIKO,CITIZEN
電話:0755-27837162
手機:13510569637
郵箱:jinluodz@163.com
Q Q:657116624
地址:深圳市寶安41區甲岸路19號
網址:http://www.jisiw.com
業務經理
客服經理
